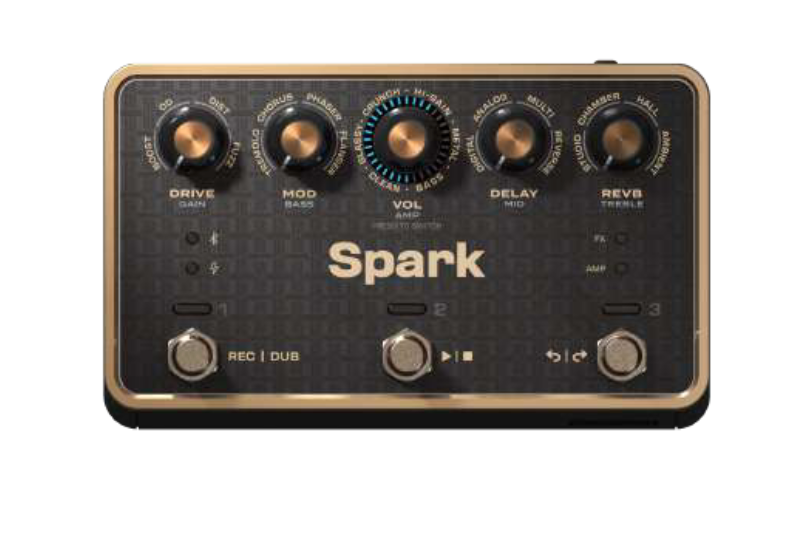

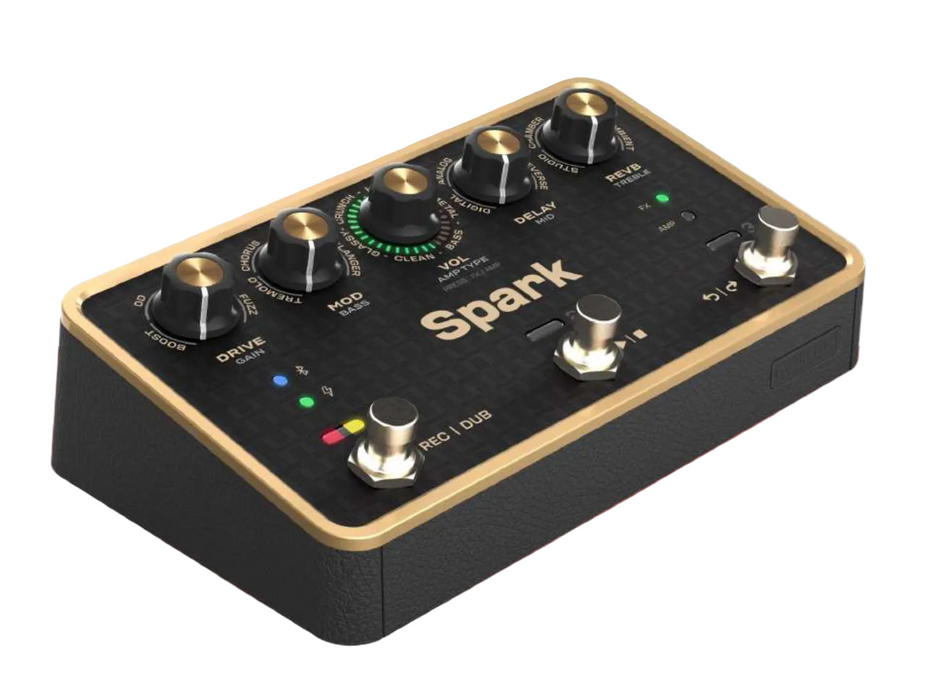

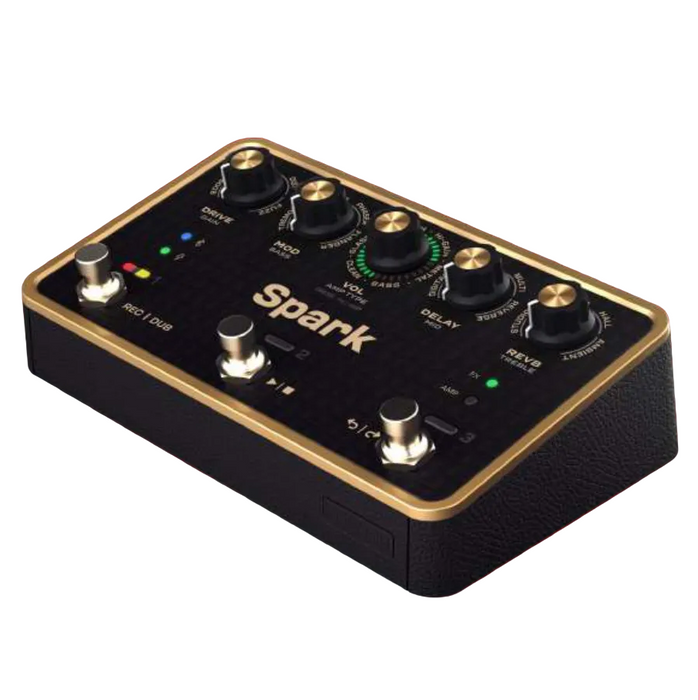

Positive Grid Portable Smart Amp & Effects Pedal w/Looper

The Positive Grid Spark PEDAL puts a complete Spark guitar rig into a compact, portable floor unit. Powered by the same HD Tone Engine found in Spark 2, it combines 33 amp models, 43 effects, a built-in 60-second looper, six customizable presets, stereo outputs, USB audio, MIDI connectivity, and deep integration with the Spark app. A built-in rechargeable battery provides up to 7 hours of play time, making it a versatile solution for practice, recording, rehearsals, pedalboards, and live performance.

Key Features

• 33 amp models and 43 effects
• HD Tone Engine
• Built-in 60-second looper with overdub, undo, and clear functions
• Six customizable onboard presets across two banks
• Built-in tuner
• Amp and FX control modes
• Stereo 1/4" line outputs for direct connection to PA systems, powered speakers, or recording gear
• 1/8" stereo headphone output for silent practice
• USB-C audio interface functionality
• MIDI input and output via 1/8" TRS connections
• 1/4" TRS expression pedal input
• Bluetooth 5.0 and 2.4 GHz Wi-Fi connectivity
• Spark app integration with Spark AI and ToneCloud access
• Access to more than 100,000 community-created ToneCloud tones
• Built-in rechargeable battery with up to 7 hours of play time

Specifications

Controls

Footswitches: 3 steel footswitches for preset switching and looper control
Effect/Amp Controls: 4 multifunction knobs
Main Control: 1 multifunction knob for amp selection and volume
Presets: 6 customizable presets across 2 banks
Tuner: Built-in

Connections

Instrument Input: 1 x 1/4"
Line Outputs: 2 x 1/4" (L/Mono and R)
Headphone Output: 1 x 1/8" stereo
Expression Pedal Input: 1 x 1/4" TRS
MIDI: 1 x 1/8" MIDI In, 1 x 1/8" MIDI Out
USB: USB-C for charging, firmware/service, and audio interface functionality

Wireless

Bluetooth: Bluetooth 5.0 for audio and Spark app connection
Wi-Fi: 2.4 GHz for over-the-air firmware updates

Looper

Recording Time: Up to 60 seconds per layer
Functions: Record, Overdub, Play, Stop, Undo, and Clear

Power

Main Input Power: DC 5V / 1A via USB
Battery: Built-in 3000 mAh rechargeable lithium-ion battery
Play Time: Up to 7 hours
Charging Time: Approximately 4.5 hours

Physical

Dimensions: 175 x 104 x 54.8 mm / 6.89 x 4.1 x 2.16" including knobs and switches
Weight: 0.56 kg / 1.23 lb

Included Accessories

USB-C to USB-C Cable
2 x 3.5 mm MIDI to Standard 5-pin DIN Adapters
Quick Start Guide
