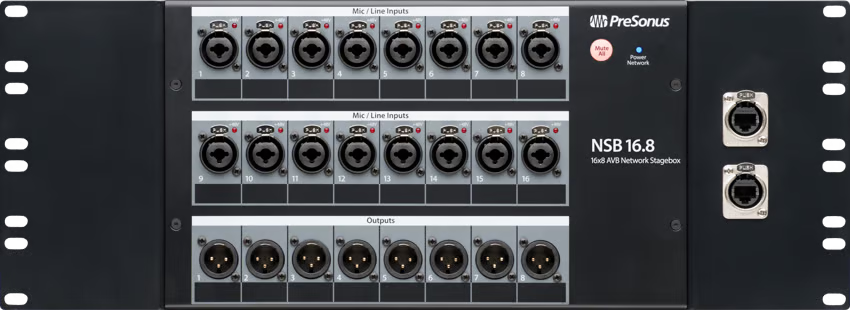

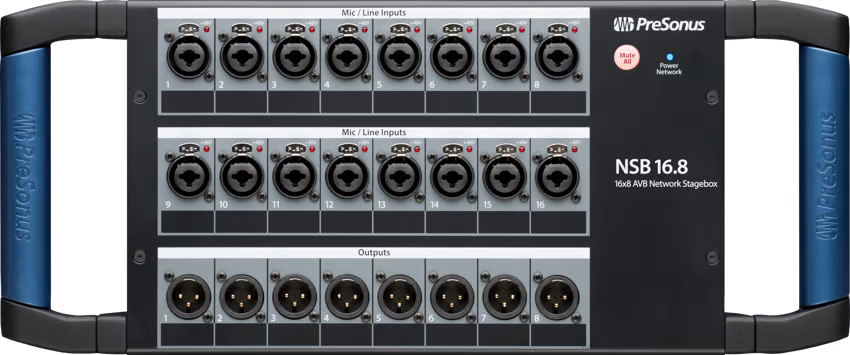

PreSonus NSB 16.8 16x8 AVB-Networked Stage Box

PreSonus NSB 16.8 16x8 AVB-Networked Stage Box

SKU NSB-16.8
by PreSonus
$1,499.00 - $1,499.00
$1,499.00
$1,499.00
$1,499.00 - $1,499.00
$1,499.00
Available to order

Estimated time before shipping to be confirmed after you place your order.

Flexiti Financing LogoInterest FREE financing available at checkout

Designed to work seamlessly with PreSonus® StudioLive® Series III mixers, the PreSonus NSB 16.8 stage box offers 16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. You also get 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console and PreSonus Universal Control software. All eight outputs employ locking XLR jacks. A built in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the NSB 16.8 to sit well on the stage and survive the rigors of the road. The unit can be rack mounted with an optional rack-ear kit.

Features

  • Rugged stage box enclosure with handles
  • 16 locking mic/line inputs and 8 locking XLR outputs
  • 16 remote-controllable XMAX preamps
    • Gain compensation for shared inputs

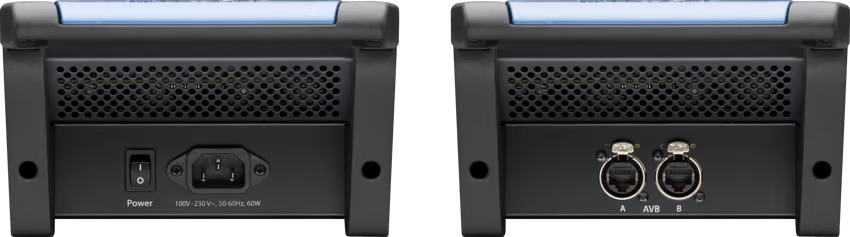

  • 2 AVB ports with locking XLR Ethernet jacks
  • 32x8 AVB (16 direct input channels + 16 gain-compensated input channels)
  • Easy setup and control from StudioLive® Series III consoles and from free PreSonus® Universal Control software
  • Optional Rackmount Kit available
SPECIFICATIONS

Electronics

  • Phantom Power: +48 VDC (±2 VDC)

  • Voltage Requirements: 100–230 VAC, 50–60 Hz

General

  • Color: Black

  • Product Name: NSB 16.8 Networked Stage Box, Black

  • Series: NSB

Hardware

  • Digital Audio AVB Audio Network Ports: Locking XLR, Ethernet

Inputs

Line Inputs

  • Connection Type: 1/4" TRS, Balanced

  • Frequency Response: 20–20 kHz (±0.5 dBu at Unity Gain)

  • Impedance: 10 kΩ

  • Maximum Level: +18 dBu

  • Signal to Noise Ratio: 94 dB

  • Total Harmonic Distortion: <0.005%, +4 dBu, 20–20 kHz, Unity Gain, Unweighted

Microphone Inputs

  • Connection Type: XLR Female, Balanced

  • Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)

  • Frequency Response: 20–20 kHz (±0.5 dBu at Unity Gain)

  • Gain Control Range: 0 dB to +60 dB

  • Input Impedance: 1 kΩ

  • Maximum Input Level: +12 dBu (Unity Gain)

  • Signal to Noise Ratio: 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)

  • Total Harmonic Distortion: <0.005%, +4 dBu, 20–20 kHz, Unity Gain, Unweighted

Measurements

  • Product Depth: 4.5" (11.43 cm)

  • Product Height: 7" (17.8 cm)

  • Product Height/Length: 7" (17.8 cm)

  • Product Width: 16.7" (42.4 cm)

  • Refinement Weight: 25-under

Miscellaneous

  • Power Cable: Locking IEC

  • Supported Sample Rates: 48 kHz, 44.1 kHz

Output

  • XLR Outputs Maximum Output Level: +24 dBu, ±0.5 dBu

  • XLR Outputs Output Impedance: 100 Ohms

Performance

  • Digital Audio Dynamic Range: 115 dB (A-Weighted, 48 kHz)
