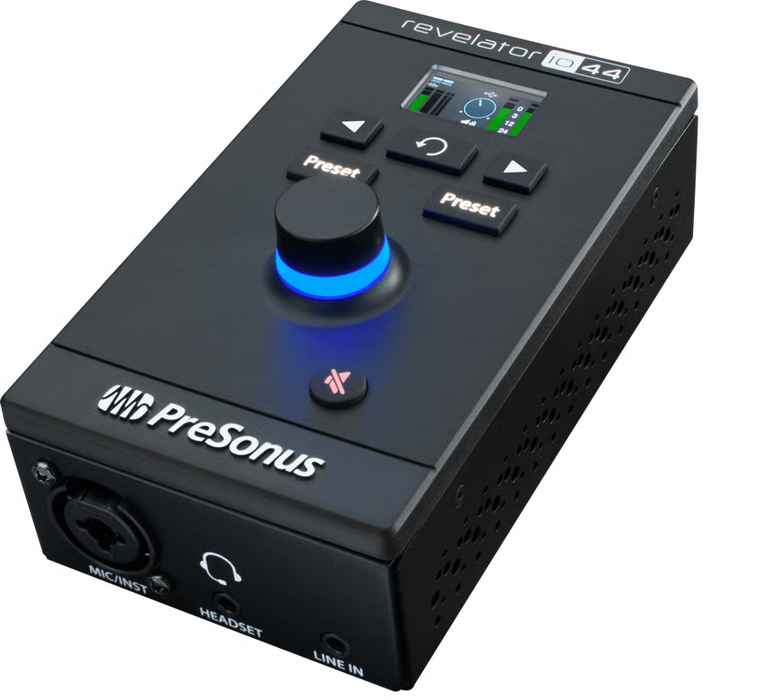

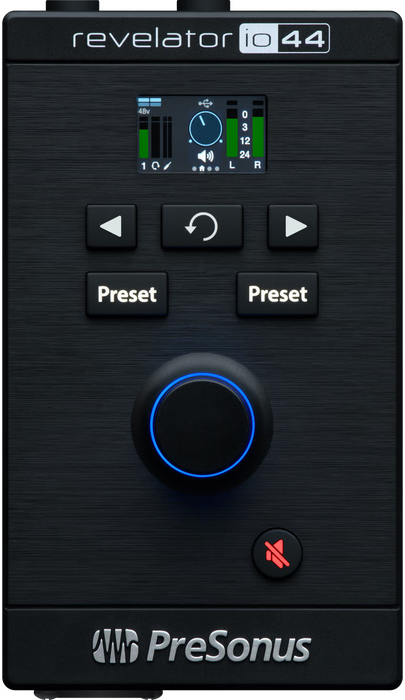

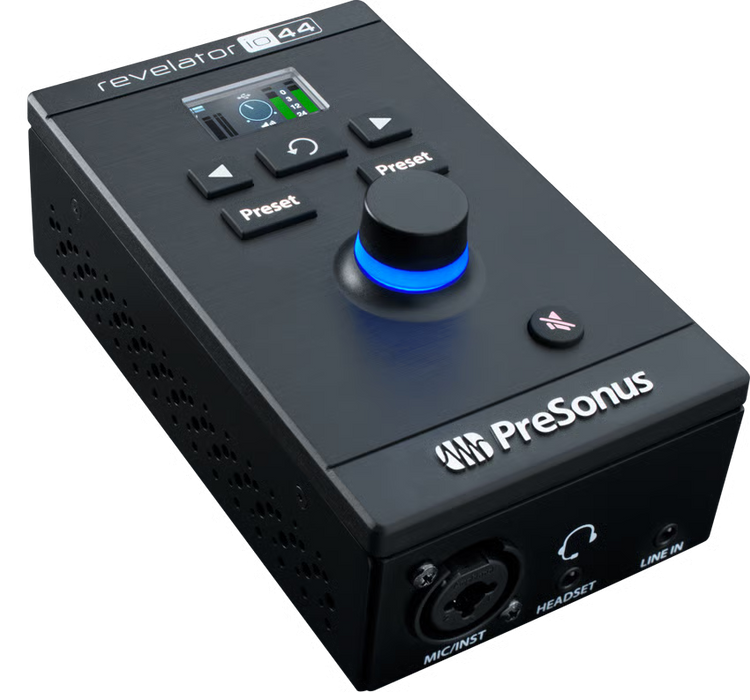

PreSonus Revelator io44 Audio Interface

Our high-end 1x1, 24-bit / 96 kHz, USB-C compatible audio interface with built-in streaming mixer, onboard audio effects and professional mic preamp.

Features

• Ultra-compact, mobile bus-powered USB-C® compatible audio interface for recording, streaming, podcasting and more
• 96 kHz / 24-bit operation for pristine audio recording
• 1 digitally controlled, high-headroom, low noise XMAX-L mic preamp for professional results
• 1 Instrument input (via combo) for guitars and basses
• 1 TRS ⅛" Stereo Line input for DJ mixers and more
• Stand-alone functionality lets you take your sound with you
• Balanced Main Left / Right with independent level control and mute
• 1 TRRS 1/8" stereo Headset connection (mic in, stereo out)
• Integrated mixer lets you blend audio from up to three applications at once
• Powerful onboard StudioLive processing lets you polish your sound (or completely transform it) with reverb, compression, EQ, and fantastic Voice FX - all without taxing your CPU
• Professionally crafted Presets make you sound like a pro with a single click. You can also create your own custom presets to share, save, or produce on the go
• Recording software included: Studio One 6 Artist Edition

SPECIFICATIONS

Electronics / Connectivity

• Connectivity:

  • USB-C® compatible (USB 2.0, bus-powered)

  • Headphone Jack: 1/8" TRRS female (stereo headset compatible)

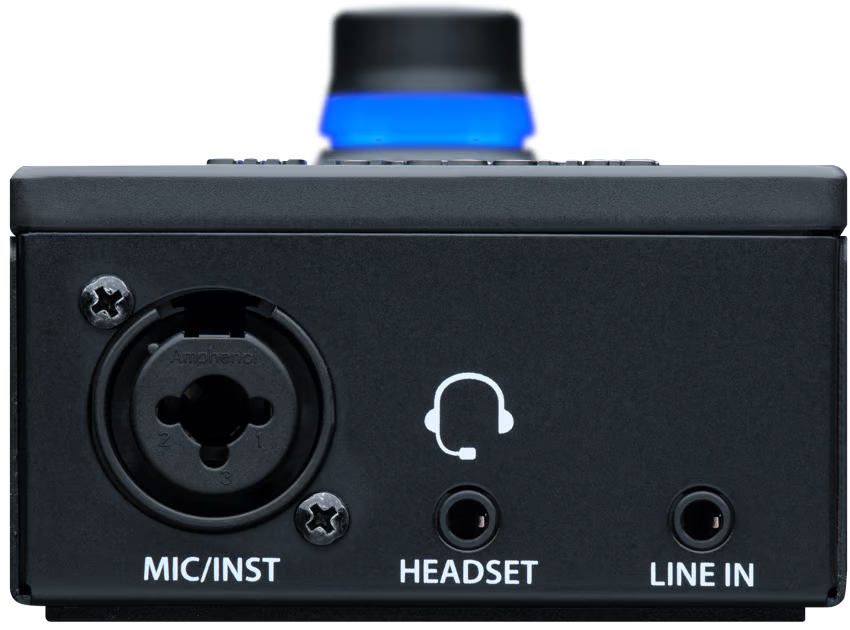

• Inputs:

  • One XLR female (balanced, microphone)

  • One 1/4" TS female (unbalanced, instrument)

  • One 1/8" TRS female (stereo line input)

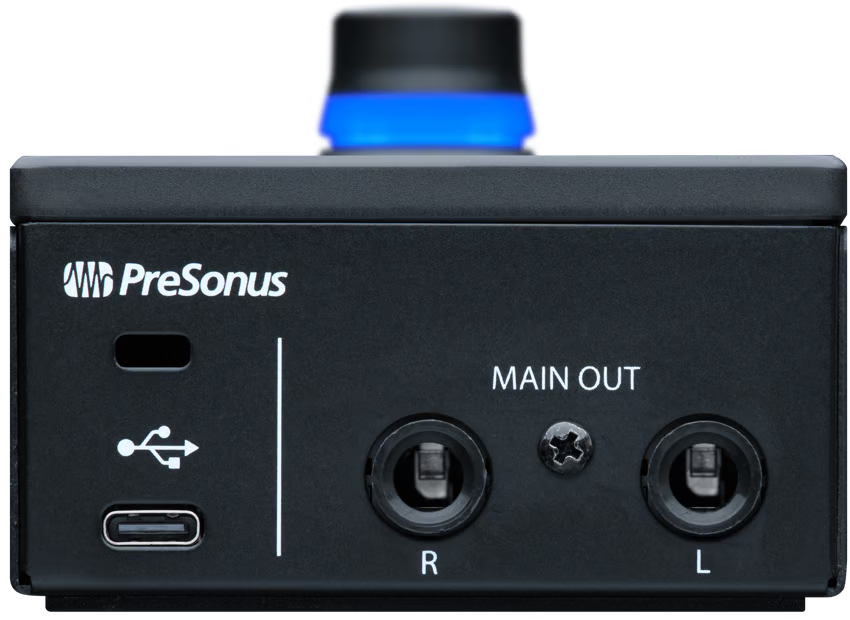

• Line Out:

  • Two 1/4" balanced (Left and Right)

• Phantom Power: +48 VDC, 10 mA

• Voltage Requirements: 100–240 VAC, 50–60 Hz

Input Specs

Instrument Inputs

• Frequency Response: 20 Hz – 20 kHz

• Gain Range: 40 dB

• Maximum Input Level: +10 dBu

Microphone Preamp

• Equivalent Input Noise: -128 dBu

• Frequency Response: 20 Hz – 20 kHz

• Gain Control Range: 60 dB

• Input Impedance: 1.4 kΩ

• Maximum Input Level: +10 dBu (±0.5 dBu, Minimum Gain)

• Total Harmonic Distortion (THD): 0.005% (1 kHz, -1 dBFS, Min Gain)

Output Specs

Headphone Outputs

• Frequency Response: 20 Hz – 20 kHz

• Impedance Working Range: 32Ω – 300Ω

• Maximum Output: 30mW/channel @ 56Ω

Main & Line Outputs

• Frequency Response: 20 Hz – 20 kHz

• Maximum Output Level: +10 dBu

• Total Harmonic Distortion (THD): 0.003%

Performance

• Digital Audio Bit Depth: 24-bit

• Dynamic Range: 96 dB

• Supported Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Measurements

• Product Width: 5.35” (13.6 cm)

• Product Depth: 3” (7.5 cm)

• Product Height: 2.3” (5.8 cm)

Miscellaneous

• Commodity Code: 8517620000
