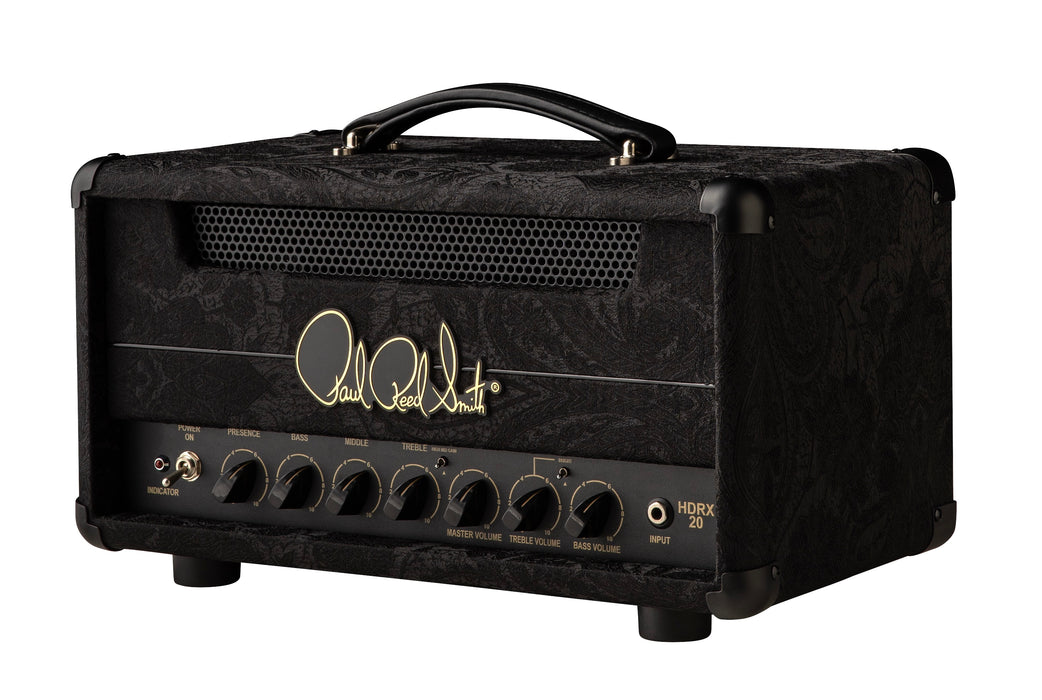

PRS HDRX 20W Head, Black Paisley
Estimated time before shipping to be confirmed after you place your order.
Interest FREE financing available at checkoutThe PRS HDRX 20 delivers authentic late-’60s British-inspired tube tone in a compact and manageable 20-watt format. Inspired by Hendrix touring amps and featuring internally bridged channels, dual 5881 power tubes, and a highly responsive EQ section, it offers exceptional clarity, dynamics, and vintage-style overdrive character.
General
• Configuration: Head Only
• Output Power: 20 Watts
Tubes
• Power Tubes: 2 x 5881
• Preamp Tubes: 3 x 12AX7 / ECC83

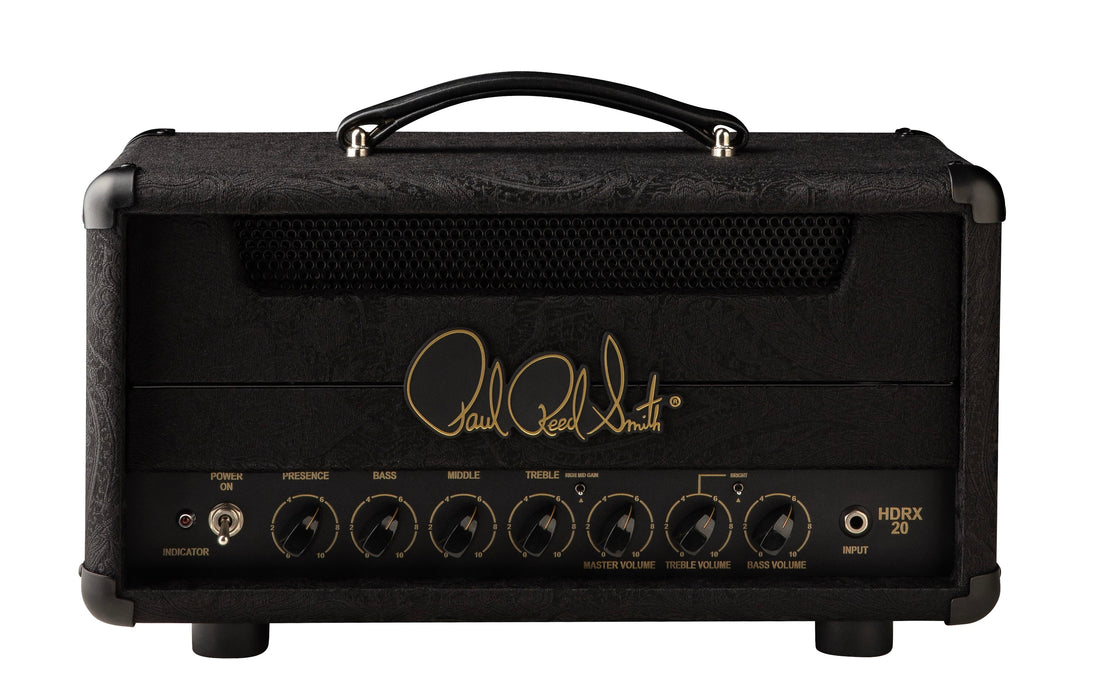

Front Panel Controls
• Master Volume
• High Mid Gain Switch (On/Off)
• Treble
• Middle
• Bass
• Presence
• Channel 1 Controls: Bass Volume
• Channel 2 Controls: Treble Volume
• Bright Switch (On/Off)
• Internally Bridged Channels

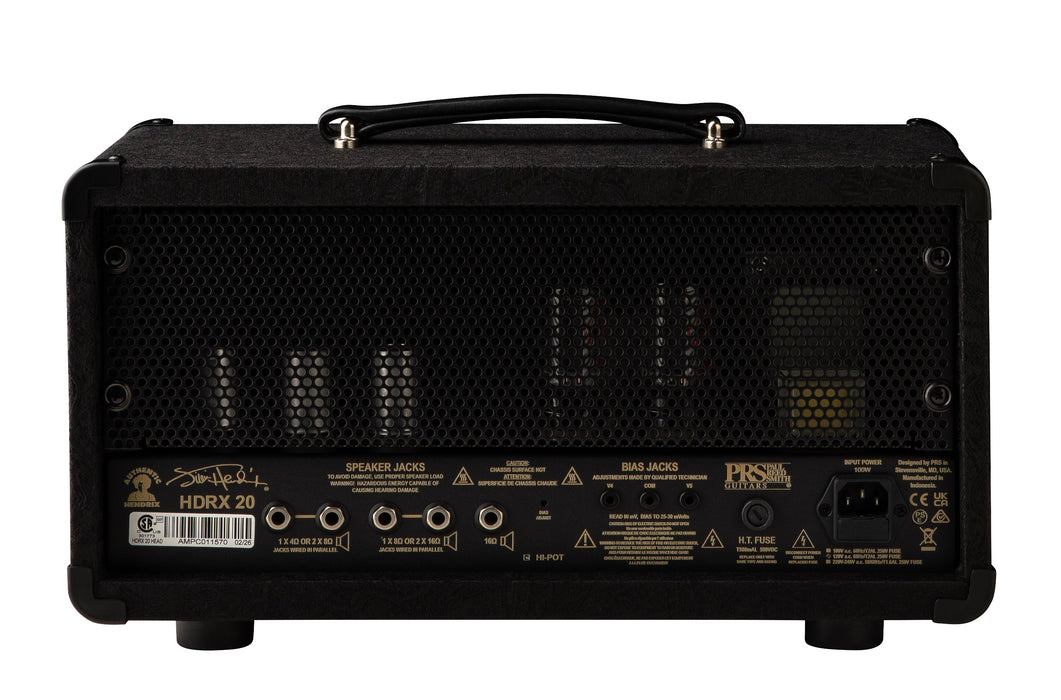

Back Panel Features
• IEC Fused Power Inlet
• Total Jacks: 5
• Speaker Outputs:
• (2) 4 Ohm Parallel
• (2) 8 Ohm Parallel
• (1) 16 Ohm
• Adjustable Bias with Monitoring Jacks
Preamp Tube Functions
• V1: Input
• V2: Cathode Follower
• V3: Phase Inverter
Hardware
• Covering & Grill: Black Paisley with Salt & Pepper Grill
• Alternate Finish: Indigo Blue Tolex with Wheat Grill
Dimensions
• Width: 17.25" (43.82 cm)
• Depth: 9" (22.86 cm)
• Height: 9" (22.86 cm)
Weight
• 27.6 lbs (12.52 kg)
