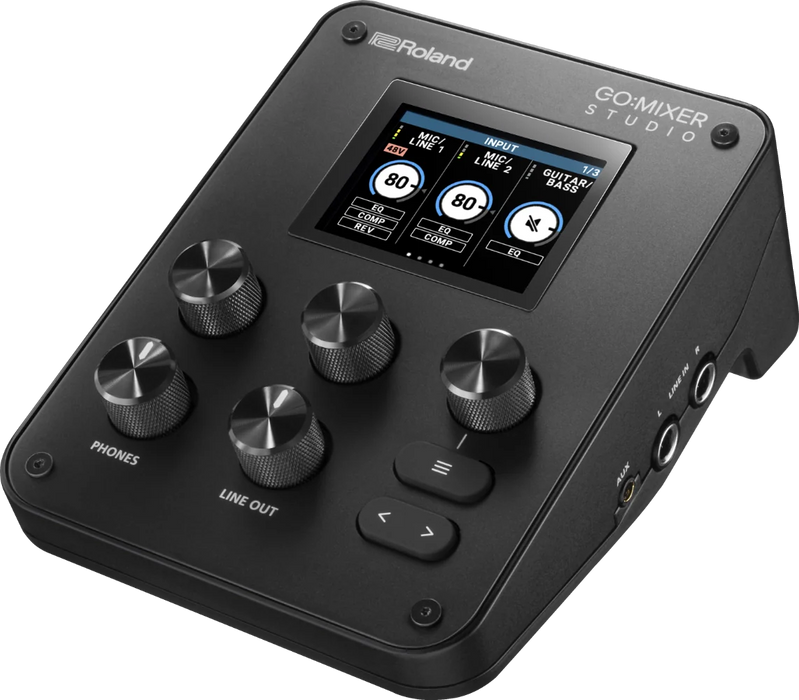

Roland GO:Mixer Studio Audio Mixer/Interface

GO:MIXER STUDIO is a highly portable studio quality audio mixer and recording interface designed for iPhone, iPad, and PC.
It allows creators to easily capture high quality audio from multiple input sources simultaneously at any location, in a simple to use and portable device. It minimizes the need for complicated setups, helping to streamline the creation process from beginning to the finished upload.

PORTABILITY

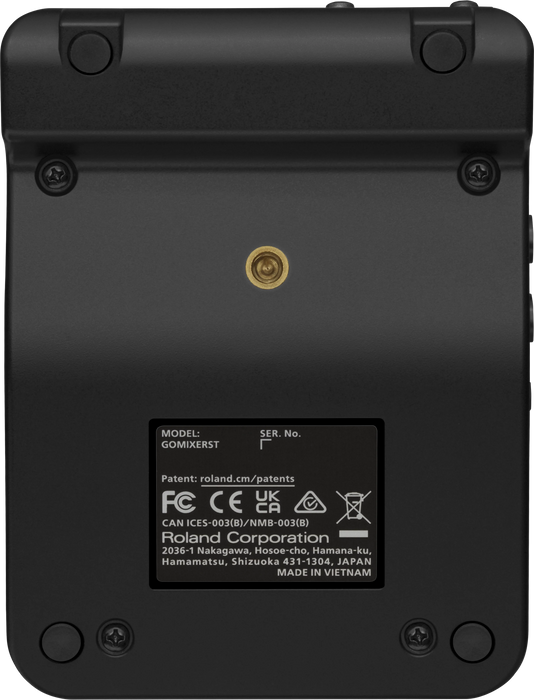

GO:MIXER STUDIO is compact and lightweight for easy mobile creation, with an underside camera mount for secure setup on stands.

EFFECTS
Built‑in effects were a top request from GO:MIXER users. GO:MIXER STUDIO delivers compression and reverb modeled after legendary studio gear, in addition to EQ, and reverb, letting users shape polished, share‑ready sound without post‑processing.

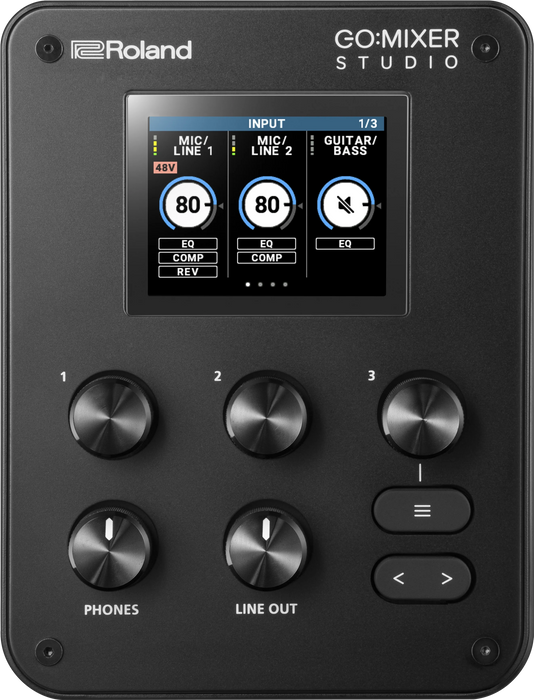

LCD SCREEN
GO:MIXER STUDIO’s clear color LCD lets users adjust inputs, outputs, effects, and mix balance directly on the unit, enabling standalone use as an audio mixer. Save and recall setups to speed up familiar sessions.

POWER
GO:MIXER STUDIO powers via the included USB‑C cable to your device for simple workflow, or connect an additional USB‑C power source (e.g. wall outlet or power bank), you can charge your iPhone while recording, allowing for extended mobile recording sessions.

SOUND
GO:MIXER STUDIO delivers studio‑quality mobile recording with dual wide gain range (+75dB) mic preamps, phantom power, and up to 24‑bit/192kHz resolution—no compromise on sound, anywhere.

SOFTWARE
The GO:MIXER Cam iOS app lets creators capture high‑quality multi‑track PCM audio with video, then mix tracks post‑recording for a ready‑to‑upload result—saving time and steps. For DAW users, GO:MIXER Editor offers full parameter control on a larger screen for fast adjustments during sessions.

FLEXIBLE I/O
GO:MIXER STUDIO features a huge selection of I/O ideal for any recording setup, with a total of 12 audio inputs and 6 audio output tracks that can be recorded/used via USB
simultaneously.

SEAMLESSLY FITS INTO YOUR CREATIVE MUSIC LIFE ON THE GO OR AT HOME

• Capture studio quality audio anywhere using an iOS mobile device or PC/Mac.
• Use without mobile device or PC as a stand‑alone audio mixer into speakers.
• Compact and portable design with underneath mounting screw to easily setup at any location.
• Wide range of inputs including XLR microphone, jack and stereo line input, dedicated Guitar/Bass input, and TRS MIDI for connection to all instrument types. The AUX jack supports TRRS connections.
• Operates via a simple USB‑C connection with bus power (no driver required), making it easy to record to mobile devices and Mac/PC. For Windows users, a dedicated ASIO‑compatible driver is also available.

STUDIO GRADE SOUND

• Record at up to 24bit 192KHz resolution for professional studio quality sound.

• Two studio grade mic preamps with wide gain range (+75db) and switchable phantom power for use with condenser and dynamic microphones to capture any signal type.

• Apply effects only to the analog output while keeping the USB feed dry — monitor with comfort, record with full post‑mix flexibility.

• By using the built‑in compressor and reverb modeled after legendary studio gear, in addition to EQ, you can cut down on post‑recording mixing.

• A total of 12 Inputs / 6 Outputs can be used simultaneously for recording several sources at once.
• Loopback audio function for blending backing tracks from PC.
• Separate PC channels can be sent to headphone only for monitoring (eg Click track for drummer).

SMART TOOLS FOR MODERN CREATIVE WORKFLOW

• GO:MIXER Cam App for iOS lets users record multi‑track audio alongside video to their smartphone. This is not possible in native camera apps.

• Balance and mix audio tracks after recording to create the perfect mix.

• Post direct to social media from smartphone (no PC required), cutting down the number of steps needed to create high quality content.

• Editor App for PC allows users to edit all aspects of GO:MIXER STUDIO from their PC.

Specifications

• Number of USB Audio Channels

  • Input: 12 channels

  • Output: 6 channels

  • At 192 kHz sample rate: 8 input channels, 4 output channels Sample Rate: AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

• Signal Processing

  • AD/DA conversion: 24 bits

  • Internal Processing: 32-bit Floating point

• Connectors

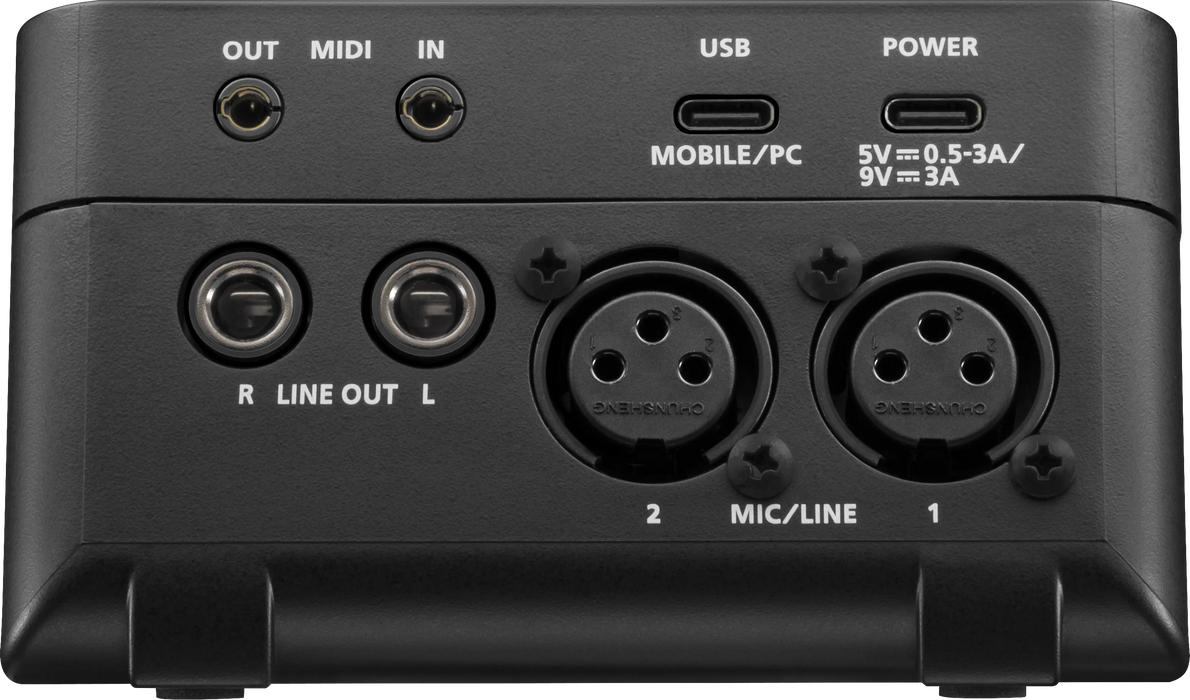

  • MIC/LINE (1, 2) jacks: XLR type (Phantom power DC 48 V, 10 mA Max)

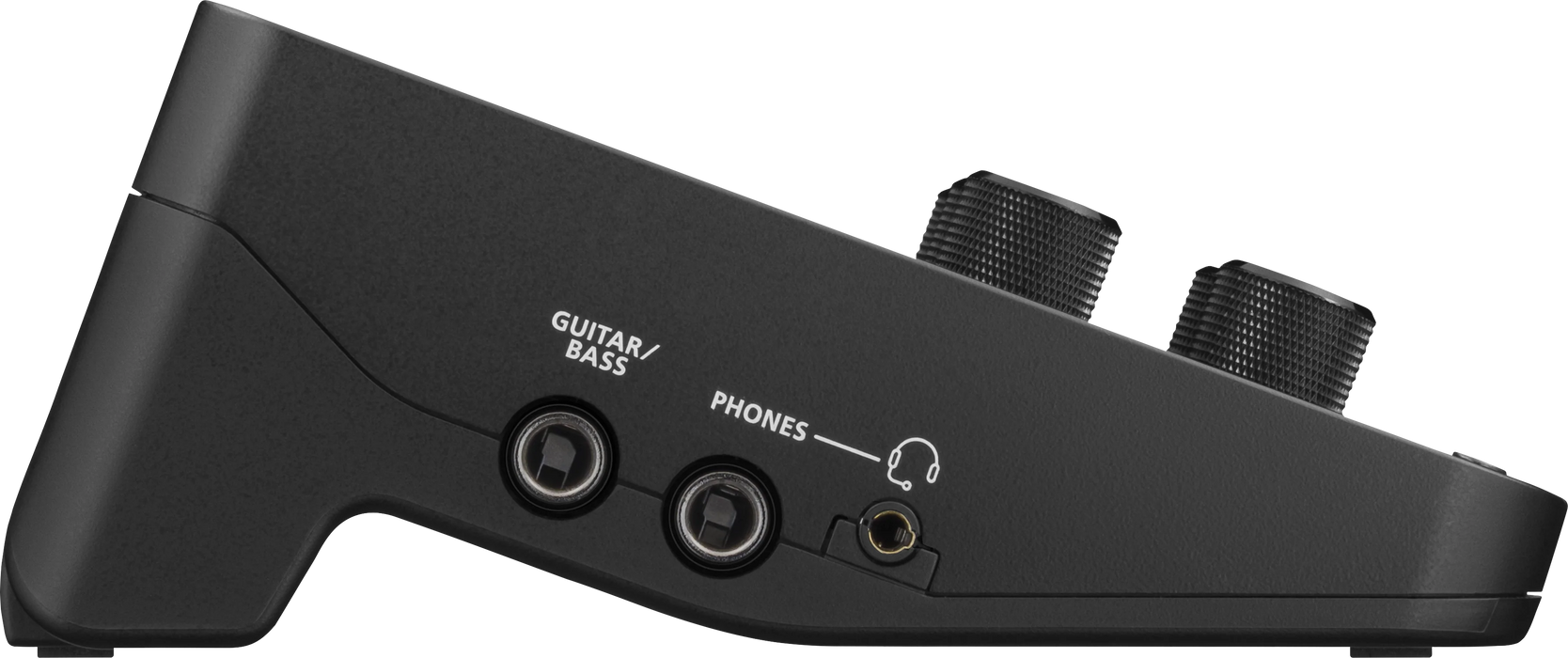

  • GUITAR/BASS jack: 1/4-inch phone type (supports high impedance)

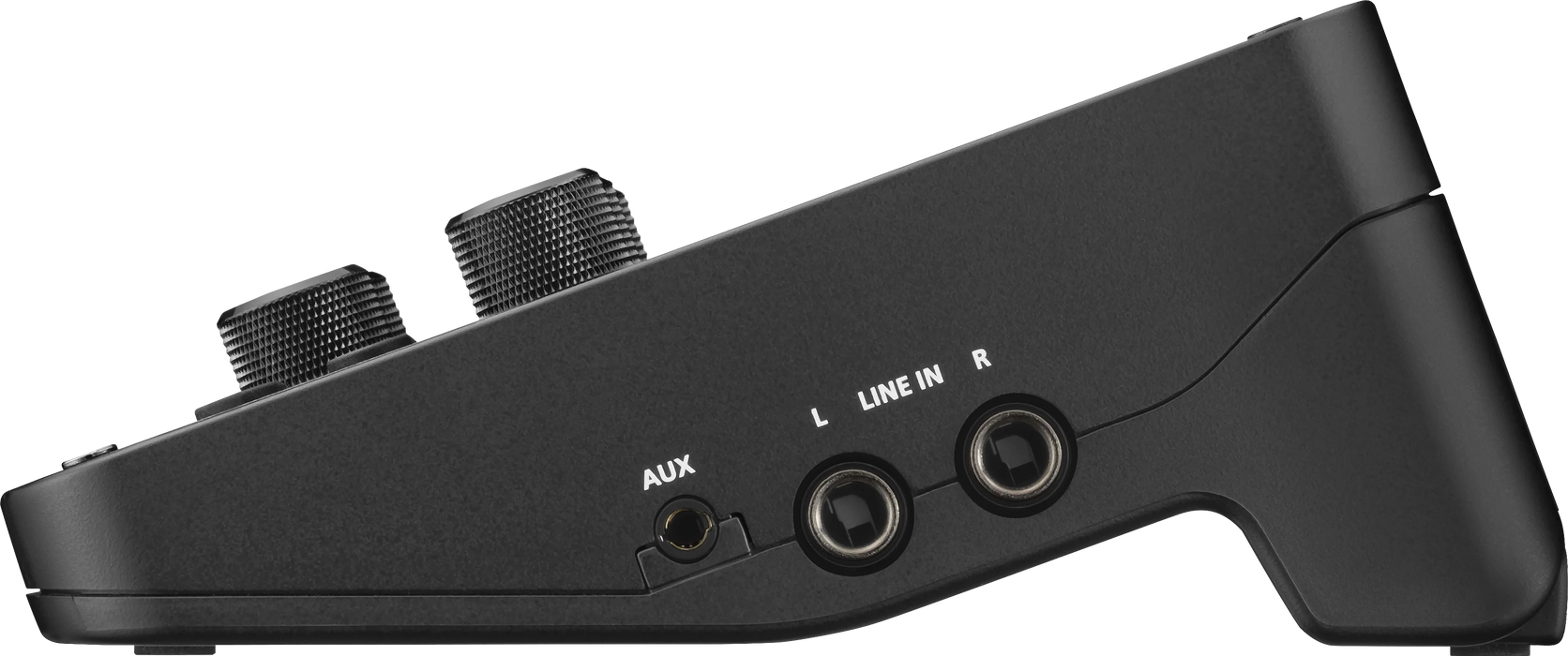

  • LINE IN (L, R) jacks: 1/4-inch phone type

  • AUX jack: Stereo miniature phone type (TRRS)

  • PHONES jack: Stereo 1/4-inch phone type

  • PHONES (MINI) jack: Stereo miniature phone type (CTIA, PLUG-IN power)

  • LINE OUT (L, R) jacks: 1/4-inch phone type

  • MIDI (IN, OUT) jacks: Stereo miniature phone type

  • USB port: USB Type-C (R) (USB Audio Class 2.0/1.0, MIDI)

  • POWER port: USB Type-C (R)

• Effects

  • MIC/LINE: Equalizer, Compressor (*2), Reverb (*2)

  • GUITAR/BASS: Equalizer, Compressor (*1,2), Reverb (*2)

  • LINE IN: Equalizer, Compressor (*1, *2)

  • AUX: Equalizer, Compressor (*1, *2)

  • HEADSET MIC: Equalizer, Compressor (*1, *2)

  • PHONES: Equalizer

  • LINE OUT: Equalizer

  • (*1) Operation at 96 kHz sample rate is not supported.

  • (*2) Operation at 192 kHz sample rate is not supported.

• Scene Memory: 16

• Input Level

  • MIC/LINE: -83.0-- -8 dBu (Maximum: +4 dBu)

  • GUITAR/BASS: -44-- -4 dBu (Maximum: +17 dBu (PAD ON))

  • LINE IN: -4 dBu (Maximum: +8 dBu)

  • HEADSET MIC: -22.5 dBu (Maximum: -10.5 dBu)

  • AUX: -10 dBu(Maximum: +2 dBu)

• Input Impedance

  • MIC/LINE: 5.6 k ohms (balanced)

  • GUITAR/BASS: 1 M ohms

  • LINE IN: 9.1 k ohms

  • HEADSET MIC: 1.5 k ohms

  • AUX: 9.1 k ohms

• Output Level

  • LINE OUT: -4 dBu (Maximum: +8 dBu)

  • AUX: -32 dBu (Maximum: -20 dBu)

  • PHONES: -4 dBu (Maximum: +8 dBu)

  • PHONES: 69 mW + 69 mW (32 ohms)

  • PHONES: 18 mW + 18 mW mW (250 ohms)

• Output Impedance

  • LINE OUT: 1.8 k ohm

  • AUX: 940 ohms

  • PHONES: 10 ohms

• Display: Graphic color LCD 320 x 240 dots

• Power

  • USB bus power

  • USB PD compatible AC adapter (commercially available)

• Current Draw

  • 5 V DC, 0.5--3 A

  • 9 V DC, 3 A

• Dimensions

  • 110 (W) x 156 (D) x 65 (H) mm

  • 4.3 (W) x 6.1 (D) x 2.6 (H) inches

• Weight

  • 440 g

  • 15.5 oz

• Accessories

  • Leaflet "Read Me First"

  • USB Type-C to Type-C Cable (1.5 m, 5 feet)

Operating System

• Microsoft Windows 11

• Apple macOS 15 or later

• Apple iOS/iPadOS 18 or later (USB-C Connector Equipped Model)


* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the GO:MIXER STUDIO, Roland cannot guarantee that a given computer can be used satisfactorily with the GO:MIXER STUDIO based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.
