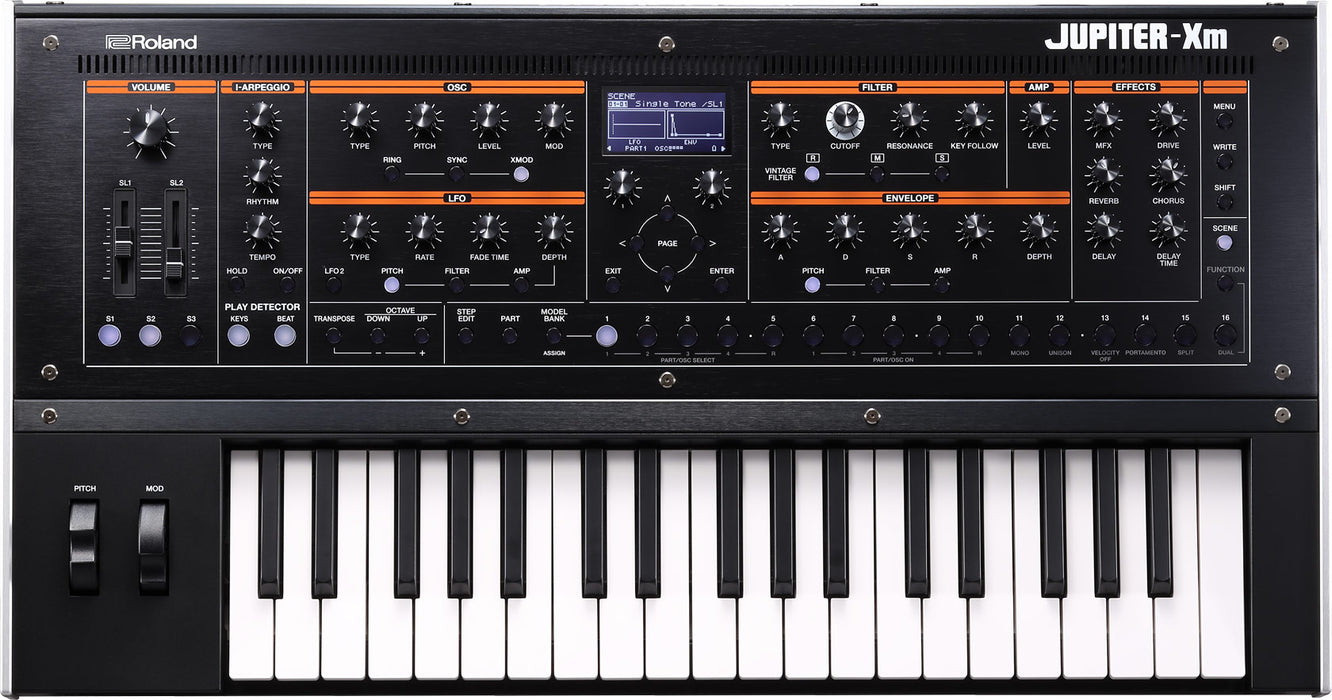

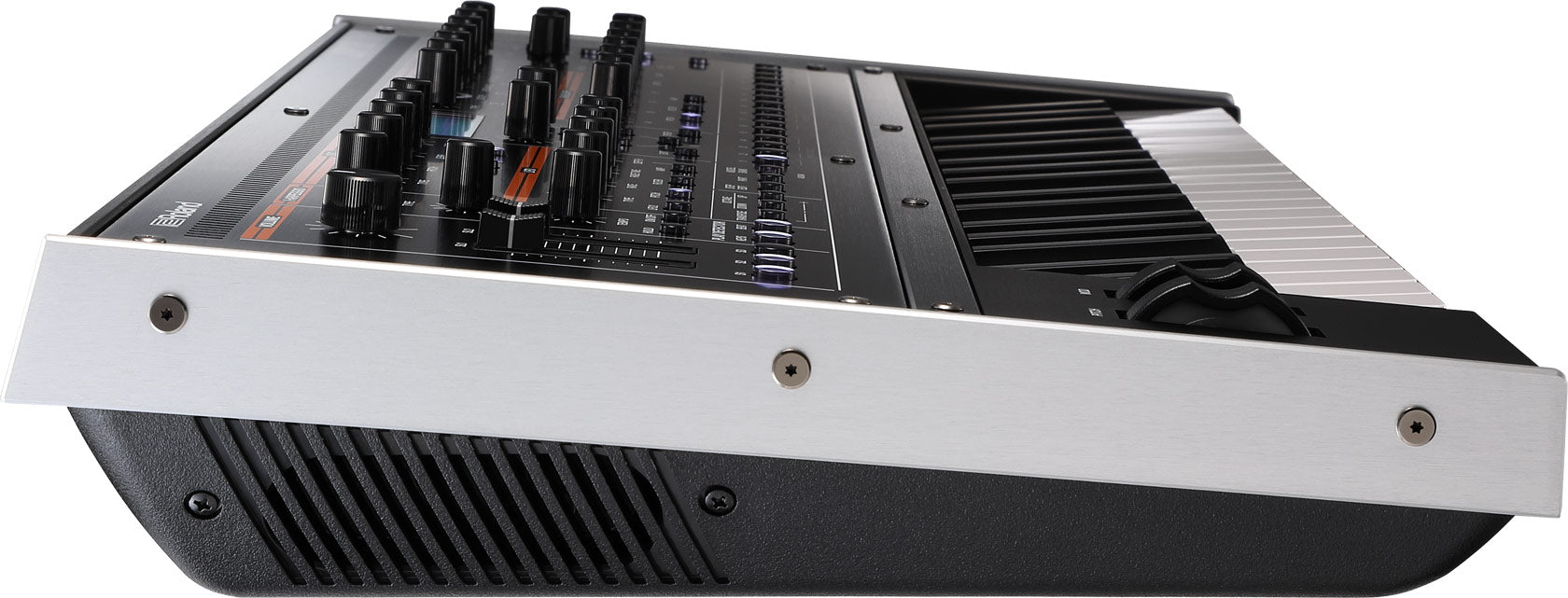

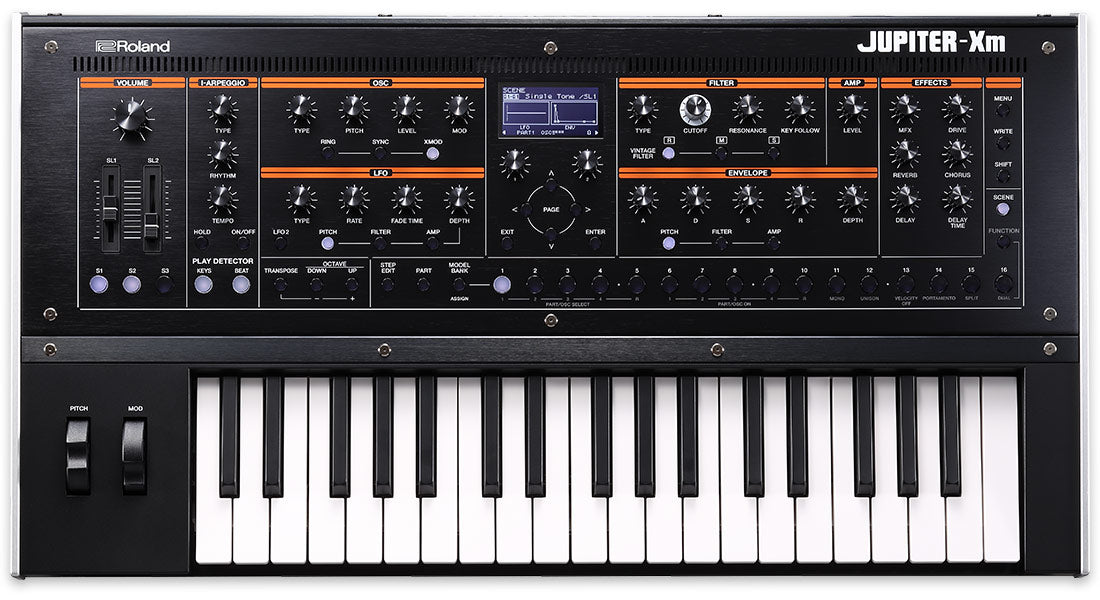

Roland JUPITER-XM Synthesizer - Compact Keys

Since the release of the JUPITER-4 in 1978, the name JUPITER has marked the pinnacle of Roland synthesizer development. JUPITER-Xm carries on this storied tradition, combining classic Roland design and premium build quality with the revolutionary ZEN-Core Synthesis System.

Bringing you the power of the flagship JUPITER-X in a compact size, this mini marvel faithfully recreates sought-after instruments from our genre-defining history and delivers the tools you need to craft the sounds of tomorrow. And with multiple layers, loads of polyphony, and deep hands-on control, you can easily build huge, spacious sounds that have as much sparkle and movement as they have warmth and punch.

specifications

• Keyboard

  • 37 keys

  • Compact type

  • Velocity sensitive

• Sound Generator

  • ZEN-Core

  • Various MODEL sound generators

• Parts

  • 5 parts total:

    • 4 Play parts

    • 1 Rhythm part

• Tones

  • Preset tones: 4,000 or greater

  • User tones: 512

  • Drum Kits: 90 or greater

• Scenes

  • 512

• Effects

  • Multi-Effects:

    • 4 systems

    • 93 types

  • Part EQ: 5 systems

  • Overdrive

  • Reverb: 8 types

  • Chorus: 5 types

  • Delay: 5 types

  • Mic Noise Suppressor / Compressor

  • Master EQ / Compressor

• Arpeggiator

  • I-ARPEGGIO

  • Multi-part arpeggiator with playing detection

• Arpeggio Parts

  • 5 parts

• Controllers

  • Pitch Bend Wheel

  • Modulation Wheel

  • Assignable Slider × 2

  • Assignable Switch × 3

• Bluetooth

  • Version 4.2

  • Profile support:

    • A2DP (Audio)

    • GATT (MIDI over Bluetooth Low Energy)

  • Codec: SBC

  • Supports SCMS-T content protection

• Display

  • Graphic LCD

  • 128 × 64 dots

• Speaker Amplifier

  • 4 W × 2

• Speakers

  • Full-range: 3.5 × 8 cm × 2

  • Tweeter: 2 cm × 2

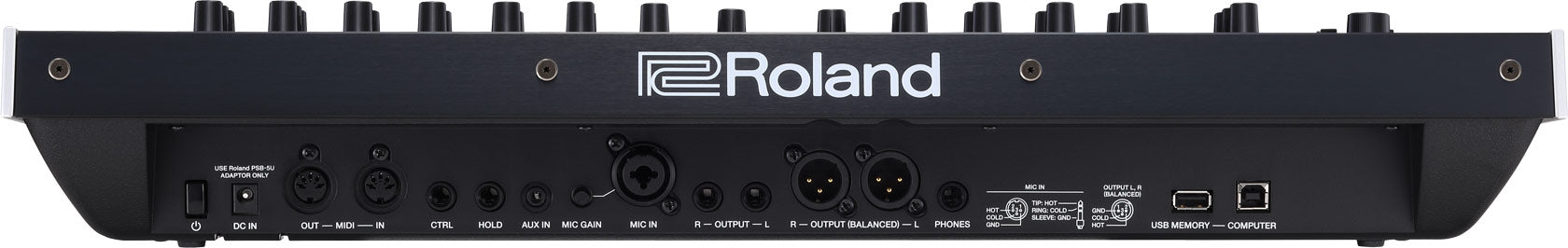

• Connectors

  • HEADPHONES:

    • Stereo miniature phone type (front)

    • Stereo 1/4-inch phone type (rear)

  • MAIN OUT:

    • L/MONO, R: 1/4-inch phone type

    • L, R: XLR type

  • MIC INPUT: 1/4-inch phone / XLR type

  • AUX INPUT: Stereo miniature phone type

  • HOLD PEDAL: Pedal jack

  • CONTROL PEDAL: Pedal jack

  • MIDI: IN, OUT

  • USB COMPUTER: Audio/MIDI

  • USB MEMORY: USB port

  • DC IN: DC input jack

• External Memory

  • USB flash drive

  • Sold separately

• Power Supply

  • DC 12 V

  • AC adaptor

  • Or 8 × rechargeable Ni-MH AA (HR6) batteries

  • Batteries sold separately

  • Current draw: 1,500 mA

• Accessories

  • Owner's manual

  • “USING THE UNIT SAFELY” leaflet

  • AC adaptor (PSB-5U)

  • Power cord

• Options (sold separately)

  • Pedal Switch: DP series

  • Expression Pedal: EV-5

  • USB flash drive

    • Commercially available USB flash drives can be used

    • Compatibility with all commercially available drives is not guaranteed

• Size & Weight

  • Width: 576 mm / 22-11/16 inches

  • Depth: 308 mm / 12-1/8 inches

  • Height: 93 mm / 3-11/16 inches

  • Weight: 4.4 kg / 9 lbs 12 oz

    • Excludes AC adaptor and batteries
