Roland V-1HD Video Mixer

The V-1HD makes it easy to connect and switch video cameras, smartphones, computers, tablets, Blu-ray players, and other HDMI video sources with a simple push of a button or slide of the T-Fader.

Features:

    4 HDMI inputs
    Supports up to Full HD 1080p
    Easy-to-use interface
    Full 12-channel audio mixer included
    Easy to operate with hardware controls
    Two HDMI outputs
    Picture-in-picture and split functions
    Two EFFECTS knobs deliver genuine visual performance
    Remote control via USB or MIDI connection
    Software control using V-1HD RCS Application for Mac, PC, and iPad

Specifications

• Video

  • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit

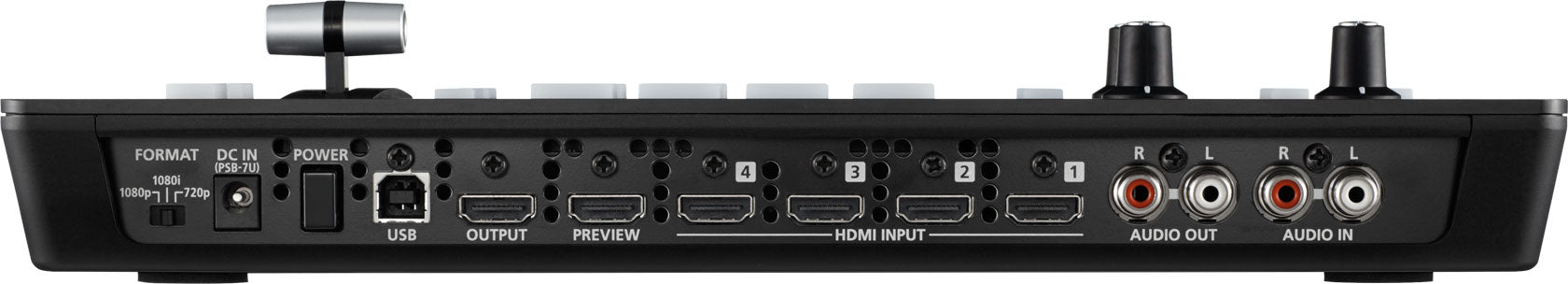

• Input Connectors

  • HDMI INPUT 1–4:

    • Type A, 19-pin × 4

    • HDCP supported

• Output Connectors

  • HDMI OUTPUT:

    • Type A, 19-pin

  • HDMI PREVIEW:

    • Type A, 19-pin

  • HDCP supported

• Input Formats

  • HDMI — 720p

    • 720/59.94p

    • 720/50p

    • FORMAT switch: 720p

  • HDMI — 1080i / 1080p

    • 1080/59.94i

    • 1080/50i

    • 1080/59.94p

    • 1080/50p

    • FORMAT switch: 1080i or 1080p

  • Interlaced video signals are converted to progressive video by internal processing.

  • Video signal frame rate is selected through SETUP parameters:

    • 59.94 Hz

    • 50 Hz

• Output Formats

  • HDMI — 720p

    • 720/59.94p

    • 720/50p

    • FORMAT switch: 720p

  • HDMI — 1080i

    • 1080/59.94i

    • 1080/50i

    • FORMAT switch: 1080i

  • HDMI — 1080p

    • 1080/59.94p

    • 1080/50p

    • FORMAT switch: 1080p

  • Video signal frame rate is selected through SETUP parameters:

    • 59.94 Hz

    • 50 Hz

• Video Effects

  • Transitions

    • CUT

    • MIX:

      • Dissolve

      • FAM

      • NAM

      • Mosaic

    • WIPE:

      • 30 types

    • TRANSFORMER:

      • 11 types

  • Effects

    • Negative

    • Emboss

    • Colorize

    • Color Pass

    • Posterize

    • Silhouette

    • Monocolor

    • Find Edge

    • Flip

    • WH-LUMIKEY*

    • BK-LUMIKEY*

    • GR-CHROMAKEY*

    • BL-CHROMAKEY*

    • PinP (1/4)*

    • PinP (1/3)*

    • PinP (1/2)*

    • SPLIT (H-STRETCH)*

    • SPLIT (H-CENTER)*

    • SPLIT (V-STRETCH)*

    • SPLIT (V-CENTER)*

  • *Effects marked with an asterisk are applied commonly to the A-BUS and B-BUS.

• Audio

  • Audio Processing

    • Sampling rate: 24-bit / 48 kHz

• Audio Input Connectors

  • Digital

    • HDMI INPUT 1–4

    • 19-pin × 4

  • Analog

    • AUDIO IN:

      • RCA pin type

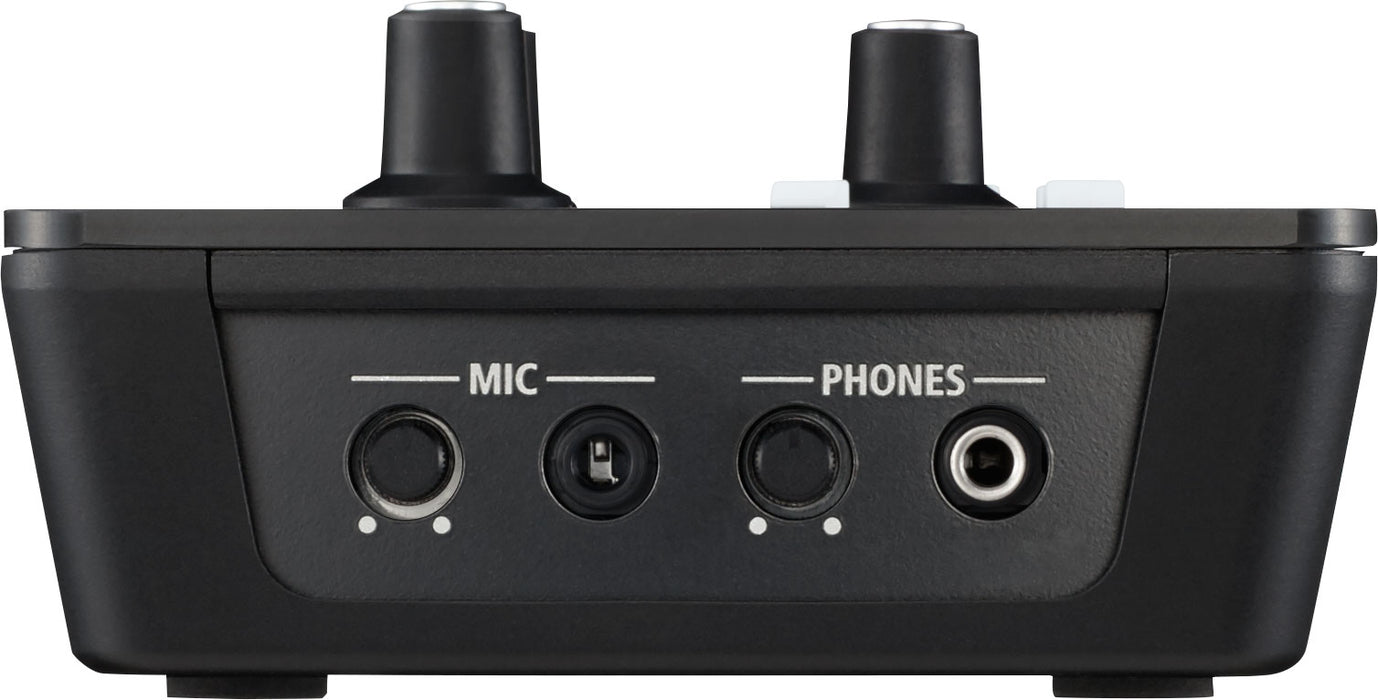

    • MIC:

      • Stereo mini type

      • Plug-in power supported

• Audio Output Connectors

  • Digital

    • HDMI OUTPUT:

      • HDMI Type A, 19-pin

    • HDMI PREVIEW:

      • HDMI Type A, 19-pin

  • Analog

    • AUDIO OUT:

      • RCA pin type

    • PHONES:

      • Stereo mini type

• Input Level

  • AUDIO IN:

    • -10 dBu

    • Maximum: +8 dBu

  • MIC:

    • -41 to -13 dBu

    • Maximum: -1 dBu

• Input Impedance

  • AUDIO IN: 15 kΩ

  • MIC: 10 kΩ

• Output Level

  • AUDIO OUT:

    • -10 dBu

    • Maximum: +8 dBu

  • PHONES:

    • 72 mW + 72 mW

    • 32 Ω load

• Output Impedance

  • AUDIO OUT: 1 kΩ

  • PHONES: 10 Ω

• Audio Effects

  • EQ

  • Delay

  • Compressor

  • HPF

  • Gate

  • Reverb

  • Mastering effect

• Other Connectors

  • USB:

    • Type B

    • For remote control from PC

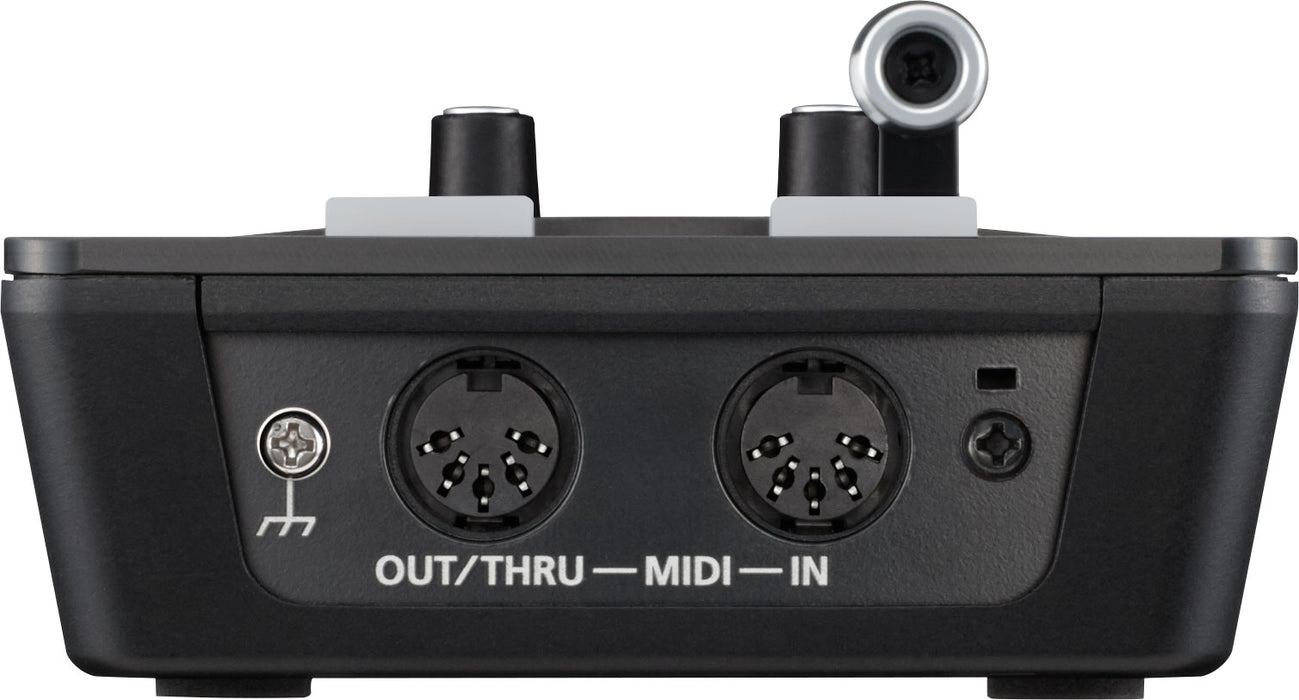

  • MIDI:

    • IN

    • OUT/THRU

• Other Functions

  • MEMORY:

    • 8 types

  • FREEZE:

    • Captures input video

  • BPM SYNC:

    • Automatic transition synchronized to tempo

  • OUTPUT FADE:

    • White

    • Black

    • Audio

• Power Supply

  • AC adaptor

• Current Draw

  • 1.5 A

• Power Consumption

  • 18 W

• Dimensions

  • Width: 313 mm (12-1/3 inches)

  • Depth: 102 mm (4 inches)

  • Height: 59 mm (2-1/3 inches)

• Weight

  • 1.2 kg (2 lbs 10-2/5 oz)

  • Excluding AC adaptor

• Accessories

  • Owner’s Manual

  • AC Adaptor

  • Power Cord

  • Cord Hook
