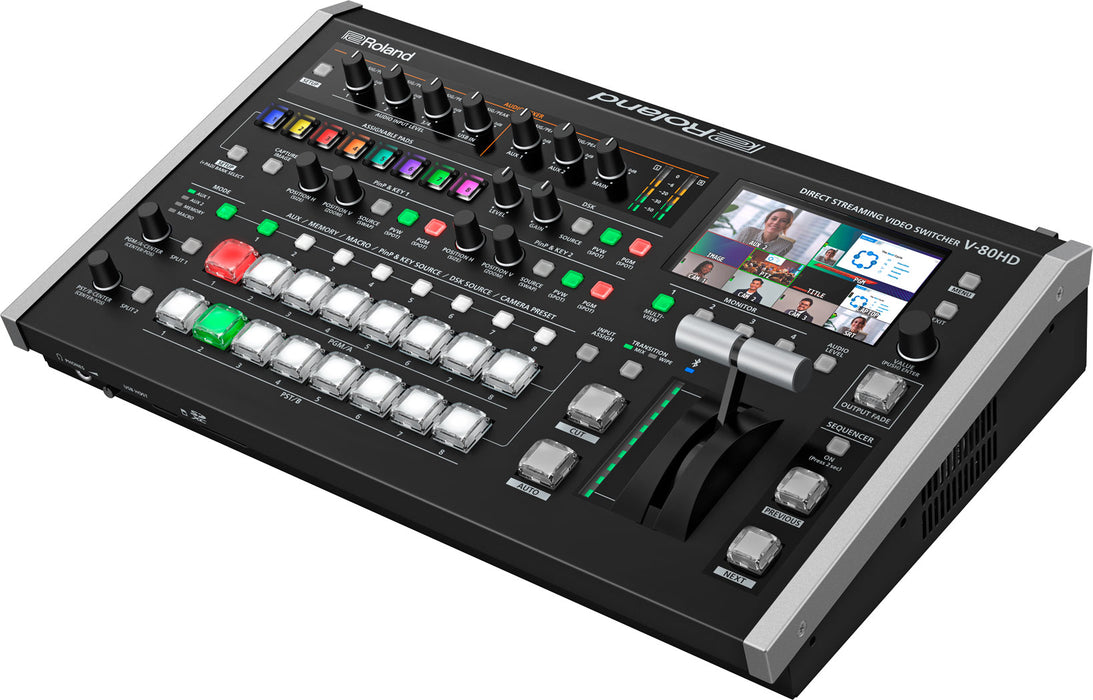

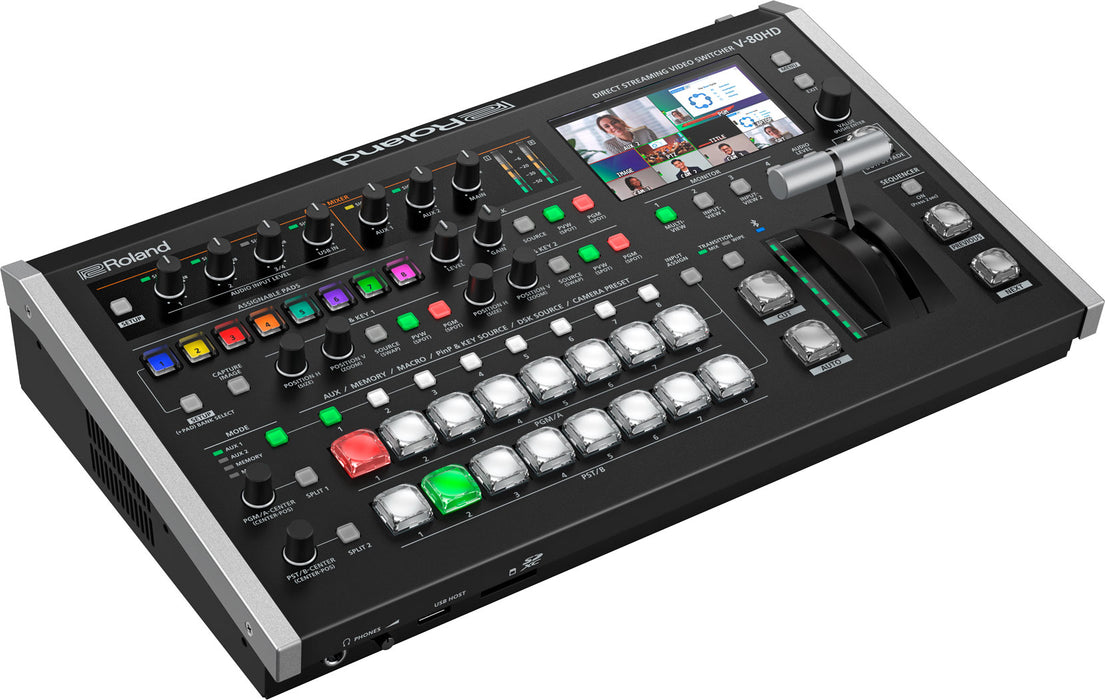

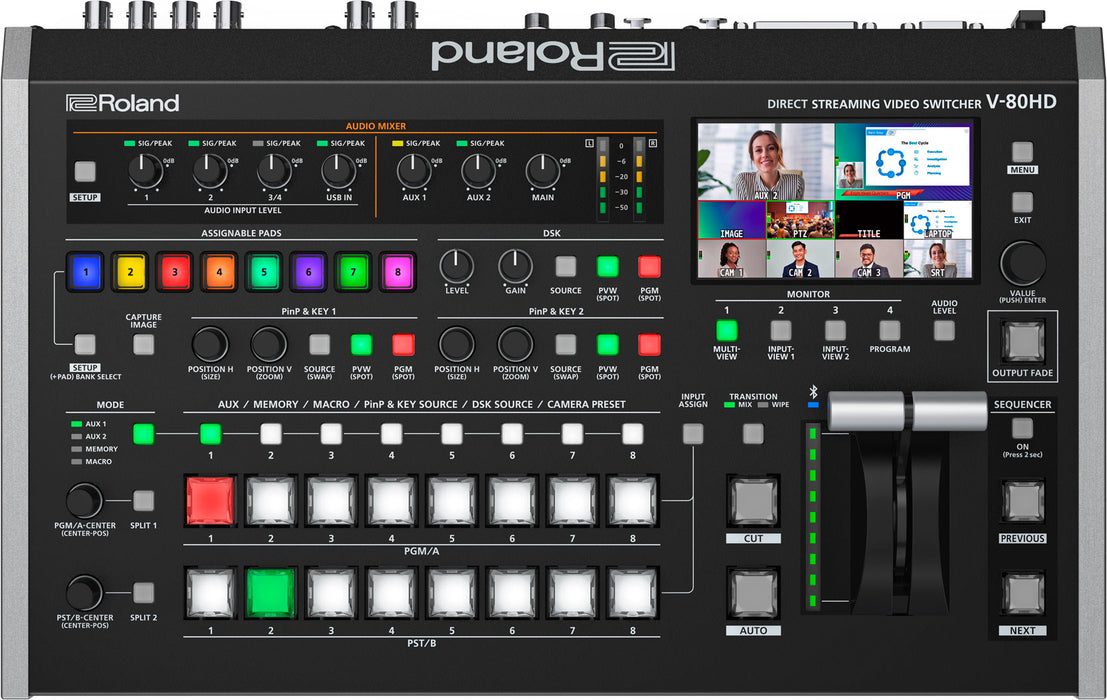

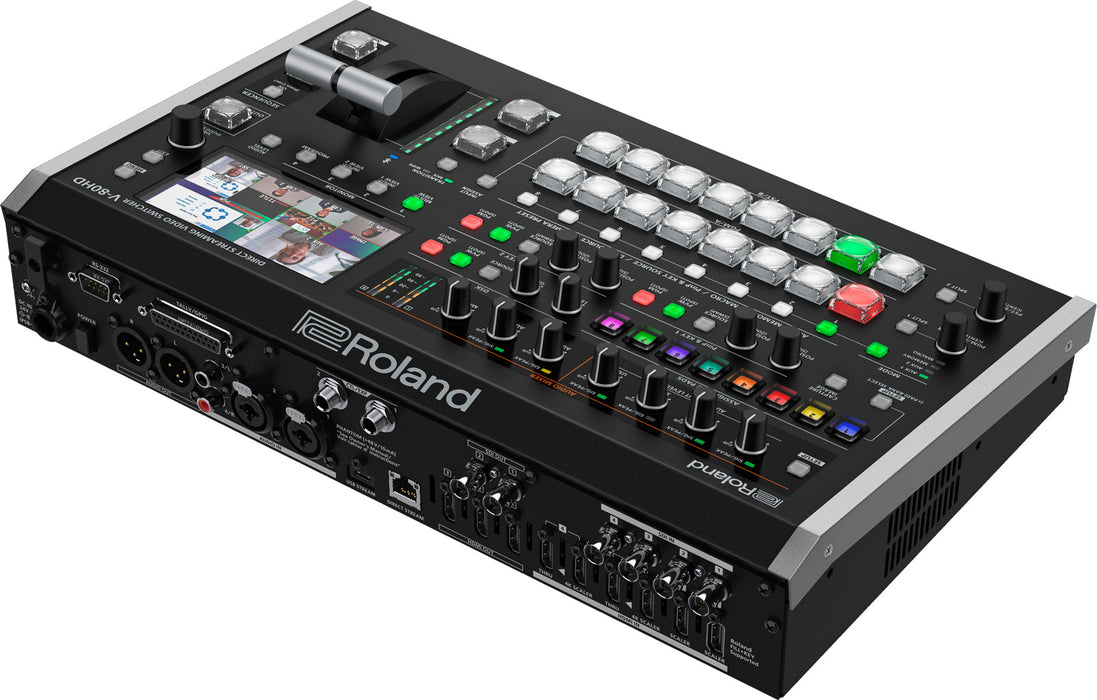

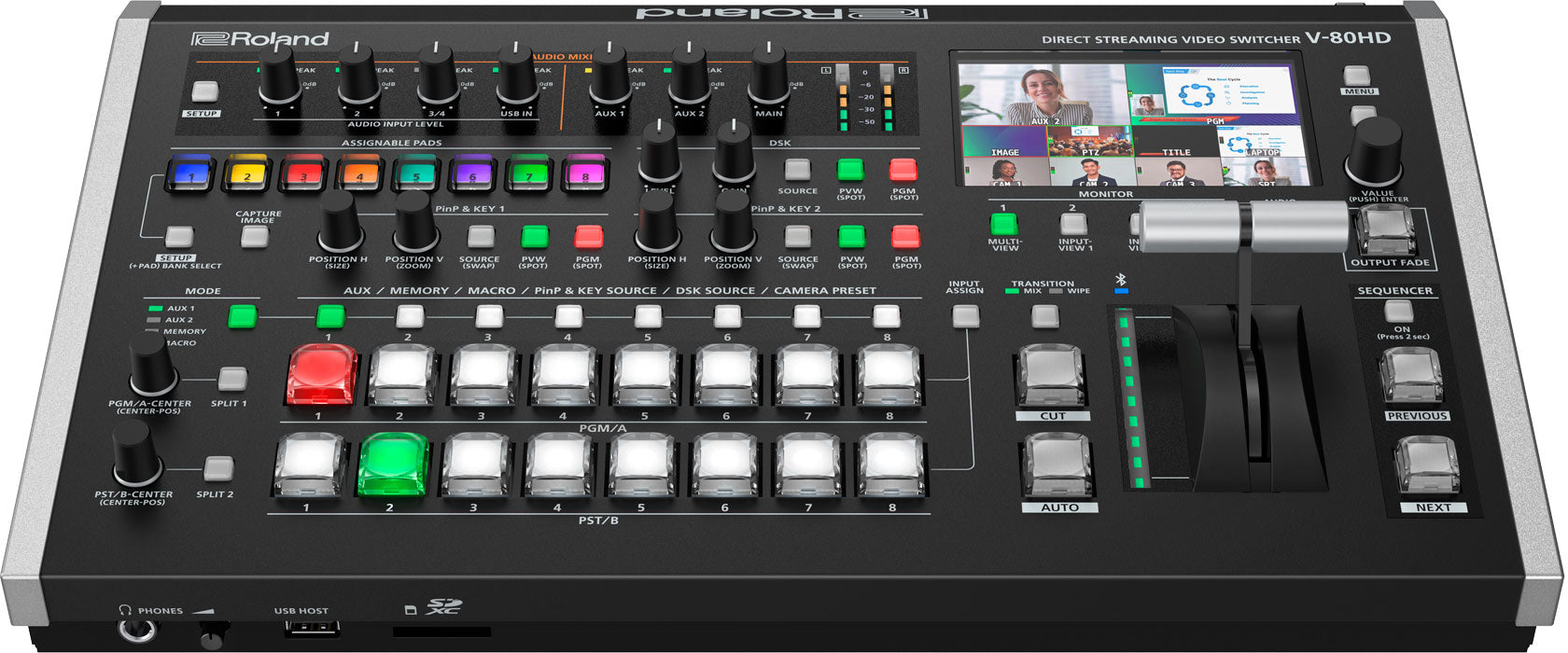

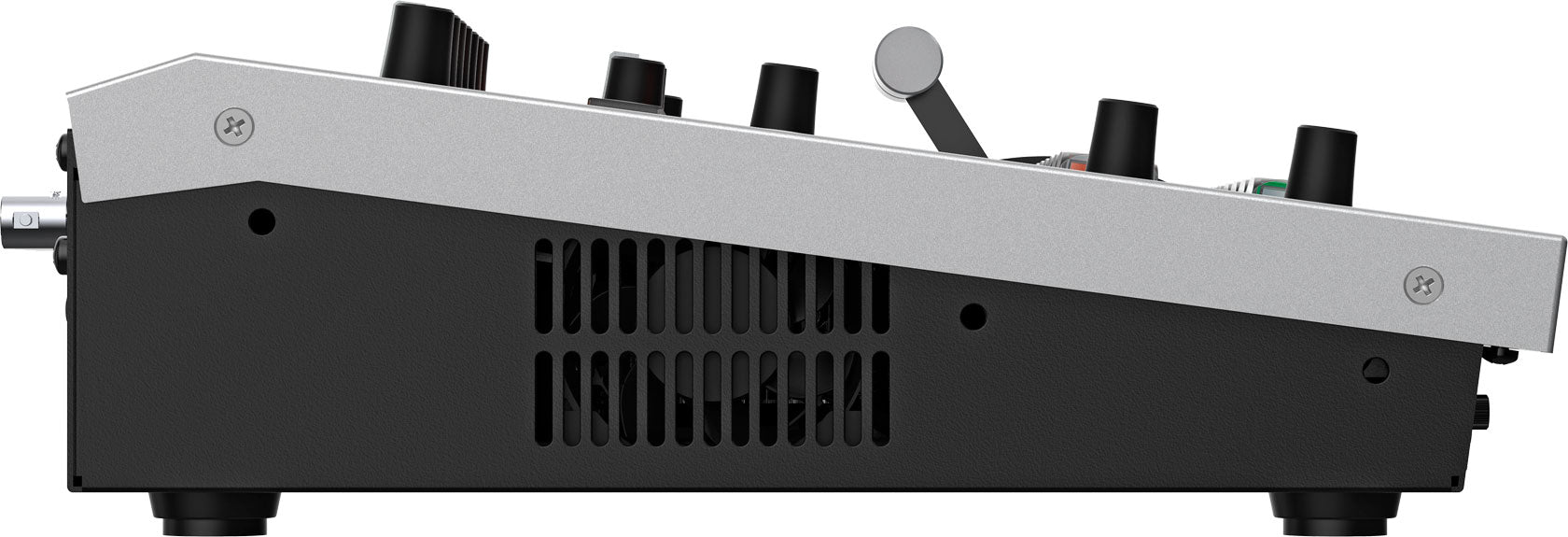

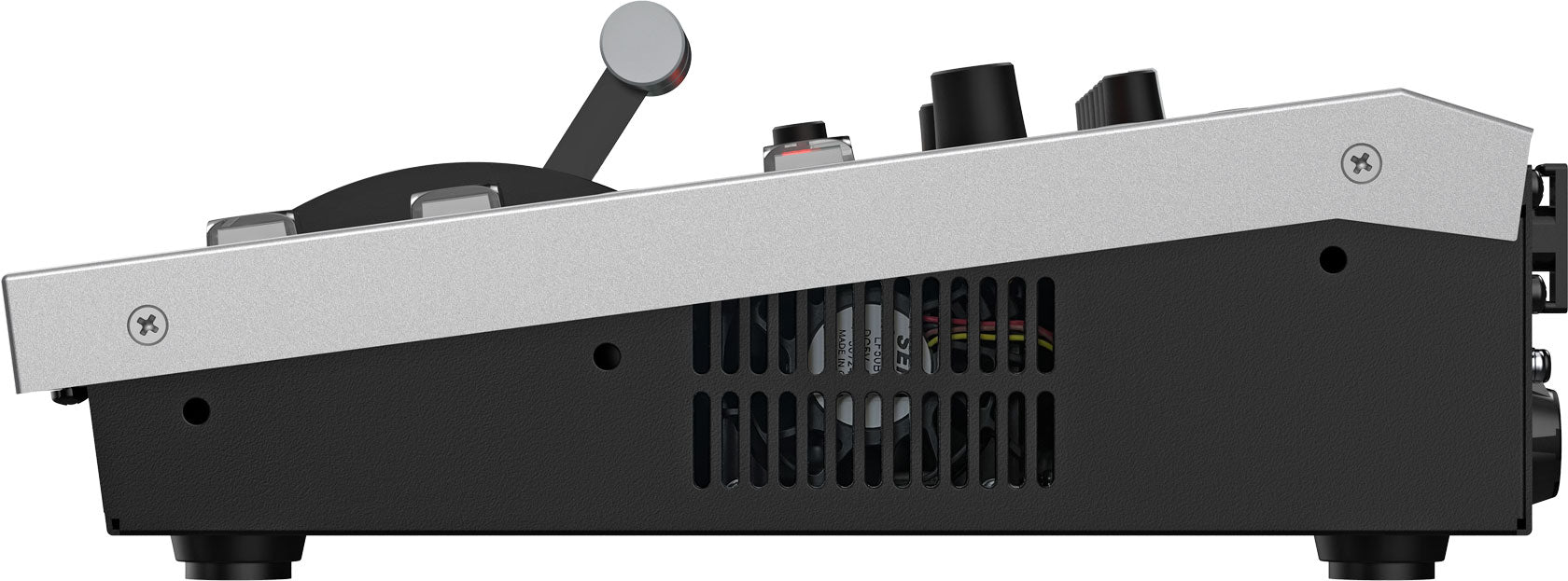

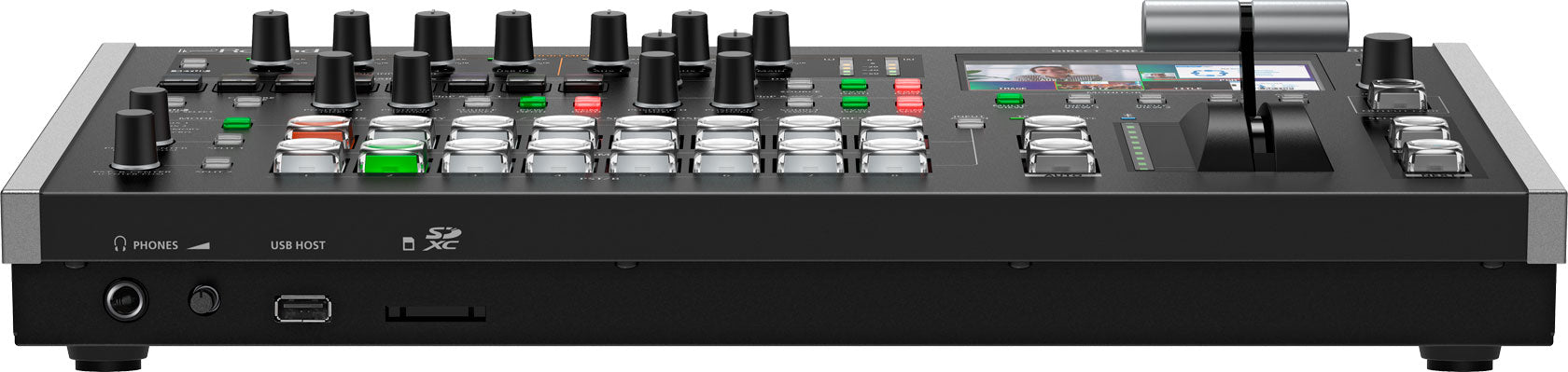

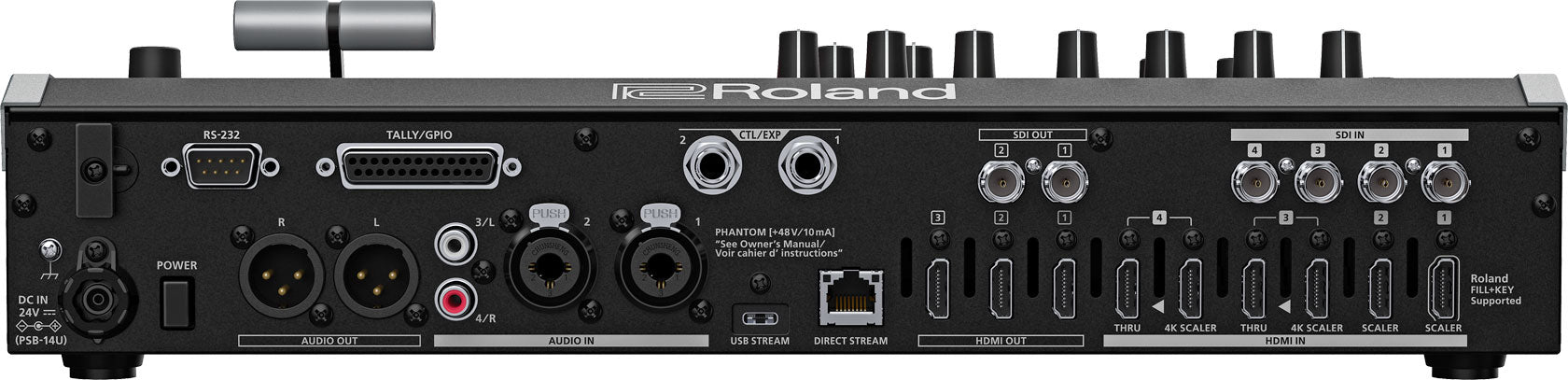

Roland V-80HD Direct Streaming Video Switcher

Compact and powerful, the V-80HD covers professional video production needs for in-person events, livestreaming, studio productions, and other applications. The all-in-one design is easy to carry and set up, while flexible I/O features support 3G SDI, HDMI, USB 3.0, and LAN (RTMP/SRT) connections. The V-80HD also includes multi-channel audio mixing and effects, integrated control for PTZ cameras, and remote operation with video monitoring via dedicated control apps.

• Professional eight-channel video switcher in a compact format
• Four 3G-SDI inputs with frame rate converters
• Four HDMI inputs, including two 4K inputs with HD downscalers and through outputs
• Seven total outputs across SDI, HDMI, USB-C streaming, and LAN (RTMP/SRT)
• Two 3G-SDI and three HDMI outputs with 10 assignable buses
• Five-layer video effects engine with two PinP windows, key composition, and DSK
• 28-channel digital audio mixer with three output buses, effects, and processing
• Direct streaming via RTMP, RTMPS, and SRT
• Integrated recording to SDXC card
• 32 scene memories, 100 macros, and 1,000-step sequencer
• Integrated control for up to eight PTZ cameras
• 32-slot still image storage supporting BMP, JPEG, and PNG
• Eight assignable control pads with access to up to 64 functions
• Remote control software for iPad, macOS, and Windows
• Support for Roland Graphics Presenter software
• Bluetooth, USB, RS-232, and LAN control

Specifications

Video

Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
Number of Video Channels: 8 Channels

HDMI Inputs: HDMI IN 1–4
SDI Inputs: SDI IN 1–4
HDMI Input Connectors: HDMI Type A x 4
SDI Input Connectors: BNC Type x 4
HDCP: Supported
Multi-Format: Supported

HDMI Outputs: HDMI OUT 1–3
SDI Outputs: SDI OUT 1–2
HDMI Through Outputs: HDMI IN 3–4 THRU x 2
USB Streaming: USB Type-C
Direct Streaming: RJ45, 1000BASE-T

Video Effects

Transitions: Cut, Mix (Dissolve/FAM/NAM), Wipe (8 Types), Split (2 Types)
Picture-in-Picture: PinP x 2 (Square, Circle, Diamond)
Keyers: 2 – Luminance Key, Chroma Key
DSK: Luminance Key, Chroma Key, Alpha Key, External Key
Additional Functions: Roland FILL+KEY Mode, Multi-View, Horizontal Flip, Vertical Flip, Still Image Capture, Still Image Playback, Output Fade, Test Pattern Output, Stream Delay

Streaming & Recording

Streaming Protocols: RTMP, RTMPS, SRT (Caller, Listener)
Streaming Container: FLV (RTMP/RTMPS), MPEG2-TS (SRT)
Video Codec: H.264
Maximum Target Video Bitrate: 20,000 kbps
Audio Codec: AAC-LC, 16-bit, 48 kHz, Stereo
Maximum Target Audio Bitrate: 384 kbps
Video Recording Format: MP4
Audio Recording Format: WAV
Audio Recording: Linear PCM, 16-bit, 48 kHz, Stereo
Recording Media: SDHC/SDXC Card, USB Flash Drive
Video Recording: SDXC Card Required

Video Player & SRT Input

Video Player File Format: MP4
Video Codec: H.264, Average Bit Rate of 20,000 kbps or Less, Up to 1080/60p
Audio Codec: AAC-LC, 16-bit, 48 kHz, Stereo

SRT Protocol: SRT Caller/Listener
SRT Container: MPEG2-TS
SRT Video: H.264, Up to 1080/60p
SRT Audio: AAC-LC, 16-bit, 48 kHz, Stereo

Still Images

Supported Formats: BMP, PNG, JPEG
Maximum Resolution: 1920 x 1080
Internal Memory: Up to 32 Files
PNG Alpha Channel: Supported
Export: SD Card and USB Flash Drive

Audio

Audio Processing: 24-bit, 48 kHz
Number of Audio Channels: 28

Analog Audio Inputs:
AUDIO IN 1–2: XLR/TRS Combo x 2
AUDIO IN 3/L, 4/R: RCA x 2

Phantom Power: DC 48 V on AUDIO IN 1–2
USB Audio: Linear PCM, 16-bit, 48 kHz, 2 Channels
Bluetooth Audio: Linear PCM, 16-bit, 48 kHz, 2 Channels
HDMI Audio: Linear PCM, 24-bit, 48 kHz
SDI Audio: Linear PCM, 24-bit, 48 kHz

Analog Audio Outputs: XLR x 2
Headphones: Stereo 1/4-inch

Audio Effects

Channel Effects: High-Pass Filter, Echo Canceller, Anti-Feedback, Noise Gate, De-Esser, Compressor, 4-Band Equalizer, Voice Changer, Delay, Auto Mixing

Master Effects: Reverb, 4-Band Equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay

Additional Functions: Output Fade, Test Tone Output

Audio Player

File Format: WAV
Audio Format: Linear PCM, 16-bit, 48 kHz/44.1 kHz, Stereo
Internal Storage: Up to 64 Tracks

Production & Control

Scene Memory: 32 Types
Macro Control: 100 Types
Sequencer Control: 1,000 Steps
Remote Camera Control: Up to 8 Units
Auto Switching: Yes
Auto Input Detect: Yes
Smart Tally: Yes
External Recorder Control: Yes
Panel Lock: Yes
EDID Emulator: Yes
Menu Languages: English, Japanese, Simplified Chinese

PTZ Camera Control

Maximum Cameras: 8
Supported Cameras: Select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Different brands and protocols can be used simultaneously.

Control Connections

USB Host: USB Type-A
USB Stream: USB Type-C
Bluetooth: Remote Control from iPad
CTL/EXP 1, 2: 1/4-inch TRS
TALLY/GPIO: DB-25
RS-232: DB-9
Direct Stream: RJ45, 1000BASE-T
