Samson SM10 10 Channel Rackmount Mixer

Ideal for stage, studio, and installation applications, the SM10 Line Mixer is a versatile and reliable addition to your audio setup. This internally powered, 19" rackmount metal chassis unit can be easily integrated into any existing system to group your signals more efficiently.

    The SM10 features ten channels of 1/4-inch stereo line inputs and a balance control for each channel. Two channels are XLR microphone inputs. This allows you to mix the relative levels of the stereo inputs to your liking. In addition, each channel has a switch for +4 dBu or -10 dBV line level input.

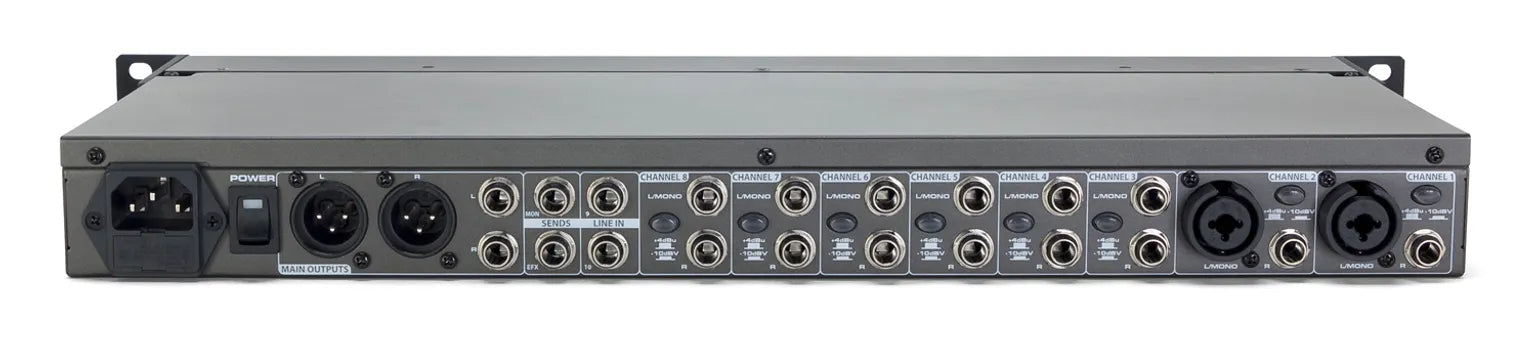

    For output, the SM10 provides electronically balanced main stereo XLR and 1/4" line outputs. The SM10 offers versatile signal routing via Main Mix, Mix B, Monitor and EFX bus outputs, as well as low-noise and discrete mic preamps with 48V phantom power.

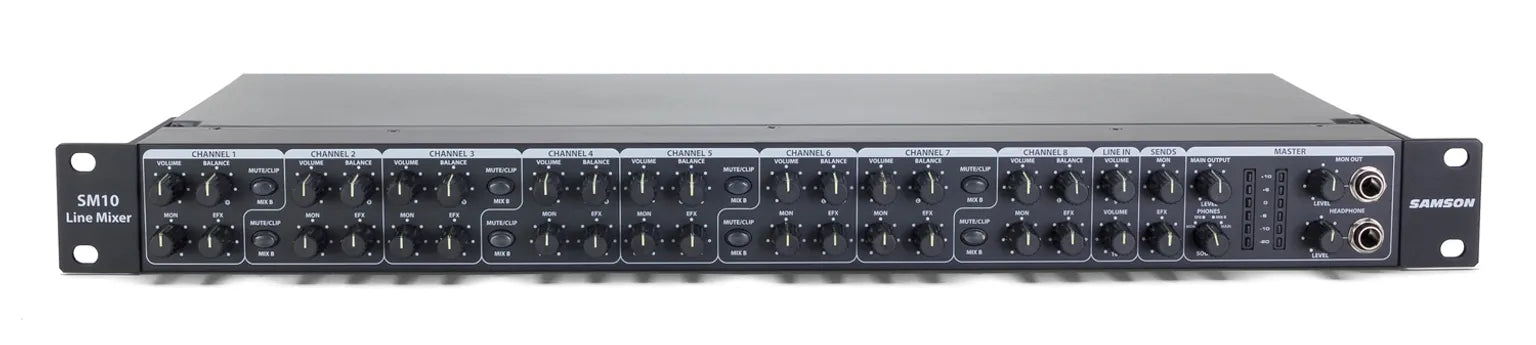

    Two auxiliary sends can also be used to route signals to external effects or create a separate mix for stage monitors. The SM10 features front-panel headphone and monitor outputs with dedicated level controls. The mix can be monitored with the SM10's 6-segment LED meter and flexible meter/headphone source control.

    The generously equipped SM10 line mixer is at home on stage, in studios, boardrooms, health clubs, restaurants, houses of worship, and more. Whether your interests lie in audio or video applications, the SM10 Line Mixer brings multiple signals together for an amazing audio experience.
