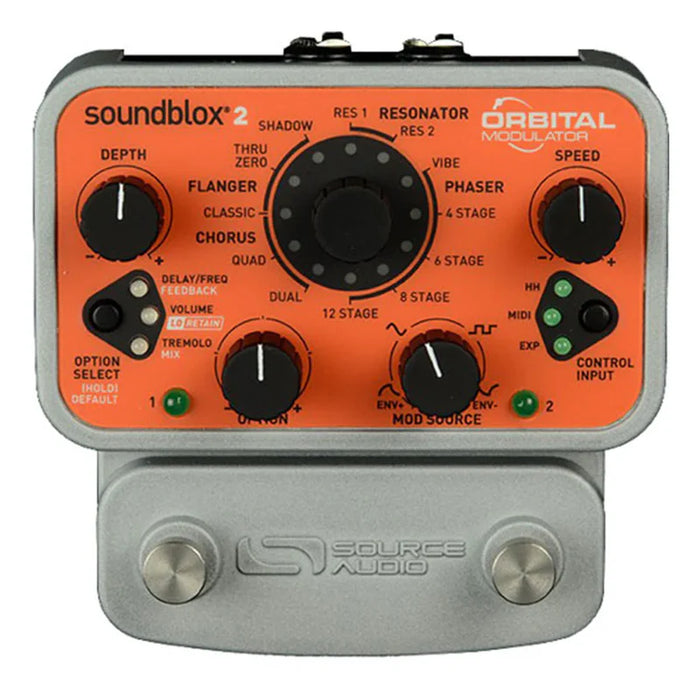

Source Audio SA226 Soundblox2 Orbital Modulator
Estimated time before shipping to be confirmed after you place your order.
Interest FREE financing available at checkoutDesigned for electric guitar players and other instrumentalists, the Source Audio Soundblox 2 Orbiter Modulator is a stompbox with 12 onboard effects including flangers, phasers, chorus, and tremolos. 9 adjustable parameters are provided, giving you a degree of control more on par with studio rackmount effects than your average guitar pedal. On the pedal itself, you can control aspects of these parameters with modulation sources such as envelope followers or LFOs.
This being a Soundblox series pedal, the Orbiter Modulator sports many external control possibilities, giving you a 3.5mm multi-purpose control input for use with compatible expression pedals, MIDI controls, and Hot Hand enabled controls. All of the pedal’s effects are achieved by means of Source Audio’s proprietary 56-bit DSP, with 24-bit converters provided on both the A/D and D/A stages.
Two presets can be stored and saved within the pedal. Using the footswitches, you can select between presets, enter tap tempo mode to further control LFOs, and bypass the effects altogether. Buffered and true bypass are both configurable on this pedal. The pedal includes a 9 VDC power supply.
Specifications
- Diverse Sound Palette ” Featuring 3 Chorus, 3 Flangers, 2 Resonator Flangers, 5 Phasers and Tremolo.
- Compact, cast aluminum housing.
- 2 User Presets easily recalled via two footswitches.
- 9 Adjustable Parameters ” Depth, Delay, Frequency, Feedback, Volume, LoRetain, Tremolo, Mix, and Speed.
- 6 Modulation Sources ” Sine Wave LFO, Square Wave LFO, Envelope Follower, Hot Hand, Expression Pedal, and MIDI.
- Multi-function In ” use the Source Audio Dual Expression Pedal or any of the Hot Hand Motion Sensors for on-the-fly control over modulation or any of the 9 adjustable parameters.
- Universal Bypass ” selectable buffered or true bypass.
- MIDI Capable ” the Multi-function In jack also allows MIDI access to presets and parameters.
- State-of-the-art DSP ” Our proprietary 56-bit Digital Signal Processor, the SA601, and crystal clear 24-bit converters.
- 9V DC power supply included
- Dimensions: L: 4.5 in./11.4cm x W: 4.5 in./11.4cm x H: 2.25 in./5.7cm (including knobs).
