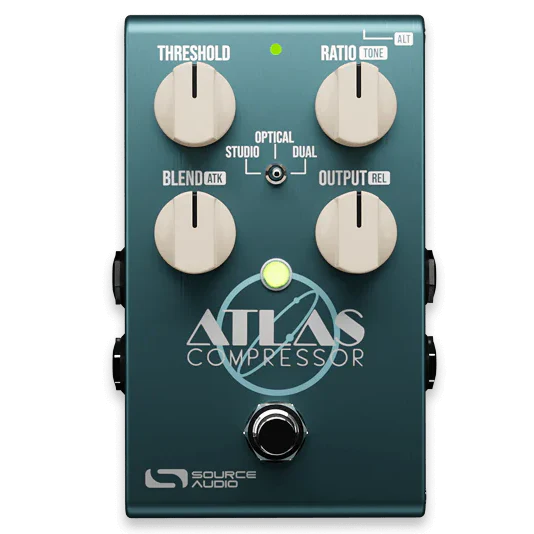

Source Audio SA252 Atlas Compressor

The Source Audio Atlas Compressor condenses the power of large studio rack units and digital DAW control into an incredibly portable stompbox format. Right from the get-go, Source Audio includes a wealth of classic compression sounds — from optical to RMS to VCA — with seriously impressive editing capabilities that allow you to perfectly sculpt your dream compression tone. What’s more, the Source Audio Neuro app gives you even greater control over every imaginable facet of the Atlas, including the ability to create, save, and edit either your own custom presets or Source Audio’s studio-quality examples. Add in the custom bass mode, noise gate, MIDI functionality, and external expression control, and the Source Audio Atlas is a seriously versatile compressor that offers some of music’s most iconic squashed, smashed, and slammed compression sounds in a pedalboard-friendly size.

Features

• Loaded with 6 styles of compression inspired by the most beloved studio and stompbox compression circuits
• Studio-level adjustment in a pedal format, with feedback ration, attack, release, makeup gain, mix, and tone available to shape your sound
• 3-band parametric and 8-band graphic equalizer available to sculpt every facet of your tone
• Connects to the Source Audio Neuro app via USB for even more compressor sounds, presets, and enhanced editing capabilities
• Bass mode optimizes your sound for use with a bass guitar
• Look-ahead compression for a bolstered attack
• Auto makeup gain automatically adjusts your gain for easy signal leveling
• Optional buffered bypass or true bypass functionality
• Adjustable noise gate to keep your signal clean and clear
• Dual input/output for stereo connectivity
• 9V DC power supply included

Specifications

• Pedal Type: Compressor
• Analog/Digital: Digital

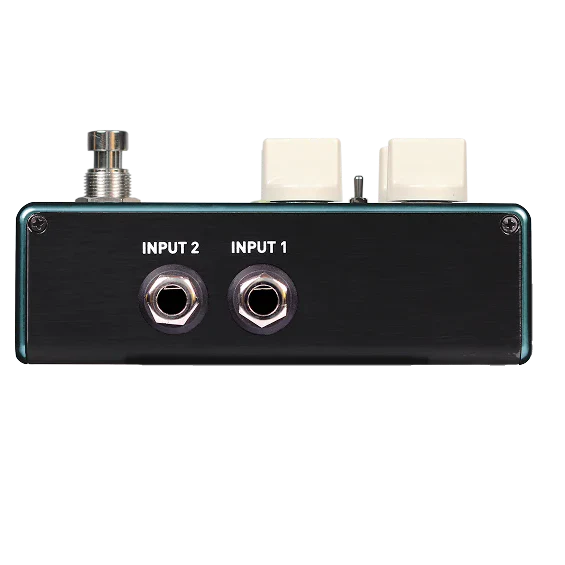

• Inputs: 2 x 1/4"

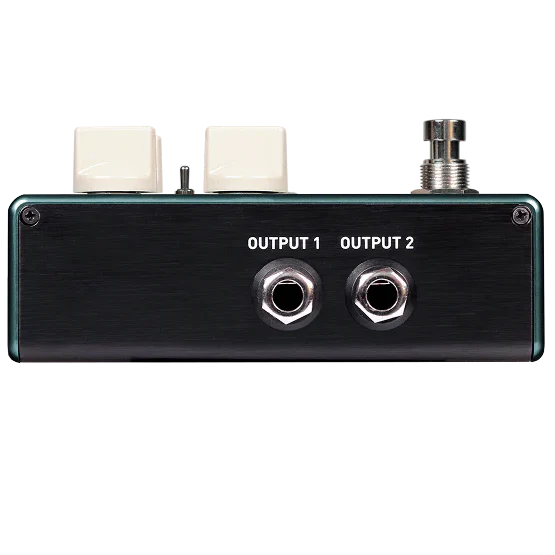

• Outputs: 2 x 1/4"
• Other I/O: 1 x 1/8" (control)
• MIDI I/O: USB
• USB: 1 x Type Mini-B
• Bypass Switching: True Bypass, Switchable to Analog Buffered
• Additional Features: Source Audio Neuro app
• Power Source: 9V DC power supply (included)
• Power Usage: 150mA
• Height: 2"
• Width: 2.75"
• Depth: 4.5"
