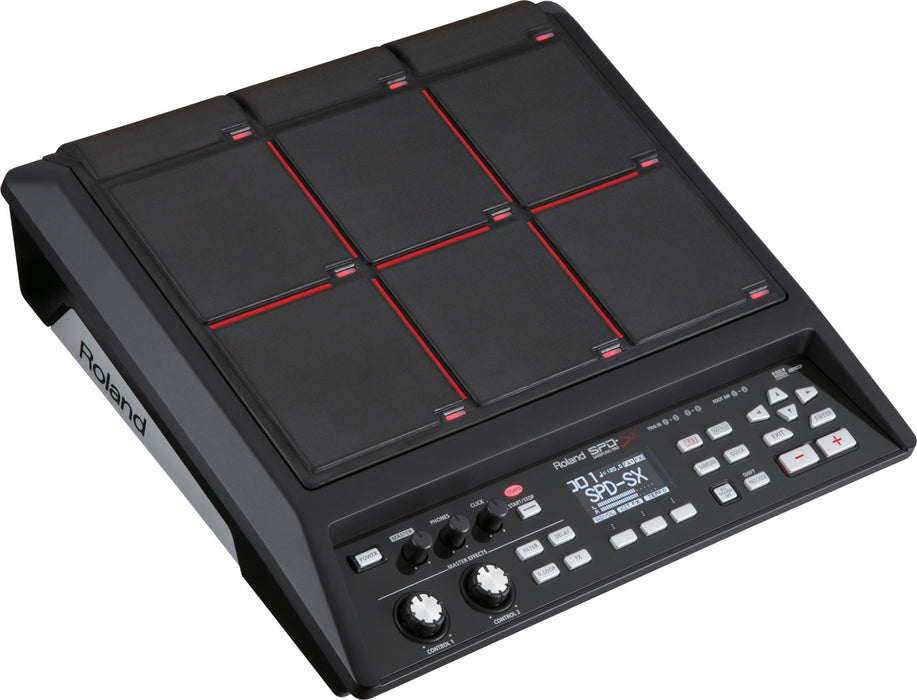

Roland SPD-SX Sampling Pad

Since 2011, the SPD-SX has been a mainstay on professional stages worldwide, its distinctive profile regularly seen beside both digital and hybrid drum kits. This landmark Roland instrument sparked the sampling pad revolution with a wide range of tracks, clicks, loops, and one-shot sounds stored inside. Drummers and performing musicians can record, store, and trigger any type of sound on command—easing the burden of making live performances sound like the original recordings. Along with its sampling and import features, the SPD-SX comes with versatile preset kits and a large pre-loaded sample library, including loops, one-shot sounds, and melodic phrases to spark ideas and create music right away.

Specifications:

• Pads

  • Built-in pads: 9

  • LED indicators

  • 2 external trigger inputs

  • Supports up to 4 additional pads

• Maximum Polyphony

  • 20 voices

  • Maximum polyphony may become 16 voices depending on the operating state

• Recordable Wave Data

  • 10,000

  • Includes preload wave data

• Sampling Time

  • Approx. 25 hours of stereo audio

  • Approx. 50 hours of mono audio

  • Actual available time is less due to preloaded data in the internal memory

• Data Format

  • 16-bit linear PCM

  • WAV

  • AIFF

• Sampling Frequency

  • 44.1 kHz

• Kits

  • 100

• Kit Chain

  • 8 chains

  • 20 steps per chain

• Effects

  • Master Effects: 21 types

  • Equalizer

  • Kit Effect 1: 20 types

  • Kit Effect 2: 20 types

• Display

  • Graphic LCD

  • 128 × 64 dots

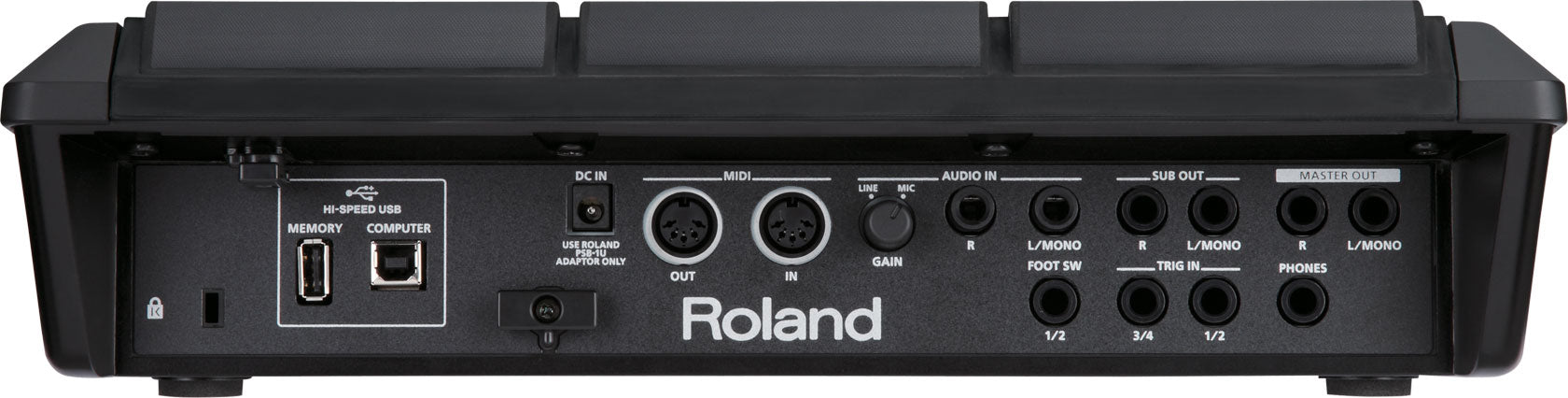

• Connectors

  • PHONES jack: Stereo 1/4-inch phone type

  • MASTER OUT jacks (L/MONO, R): 1/4-inch phone type

  • SUB OUT jacks (L/MONO, R): 1/4-inch phone type

  • AUDIO IN jacks (L/MONO, R): 1/4-inch phone type

    • LINE-MIC GAIN control

  • TRIG IN jacks (1/2, 3/4): 1/4-inch TRS phone type

  • FOOT SW jack (1/2): 1/4-inch TRS phone type

  • MIDI connectors: IN, OUT

  • DC IN jack

  • COMPUTER connector

  • USB MEMORY connector

• Interface

  • Hi-Speed USB

  • USB-MIDI

  • USB-AUDIO

  • USB Mass Storage Class

  • USB Flash Drive

• Power Supply

  • DC 9 V (AC adaptor)

• Current Draw

  • 600 mA

• Accessories

  • CD-ROM:

    • SPD-SX Wave Manager

    • USB driver

    • Preload wave data

  • Owner's Manual

  • AC Adaptor

• Options (Sold Separately)

  • Pads: PD series, PDX series

  • Cymbals: CY series

  • Kick Triggers: KD series

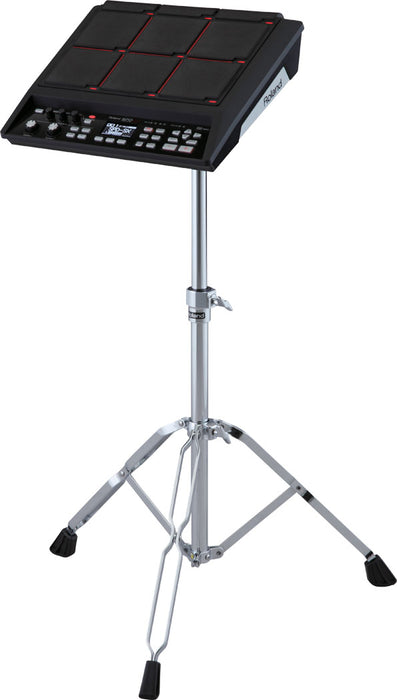

  • Pad Stand: PDS-10

  • All-Purpose Clamp: APC-33

  • Acoustic Drum Triggers: RT-30H, RT-30HR, RT-30K

  • Pedal Switch: DP-2

  • Footswitch: BOSS FS-5U, BOSS FS-6

  • Personal Drum Monitor: PM-10, PM-30

  • USB Flash Memory

    • Use USB Flash Memory sold by Roland. Operation with other products is not guaranteed.

• Size and Weight

  • Width: 364 mm (14-3/8 inches)

  • Depth: 331 mm (13-1/16 inches)

  • Height: 94 mm (3-3/4 inches)

  • Weight: 2.5 kg (5 lbs 9 oz)
