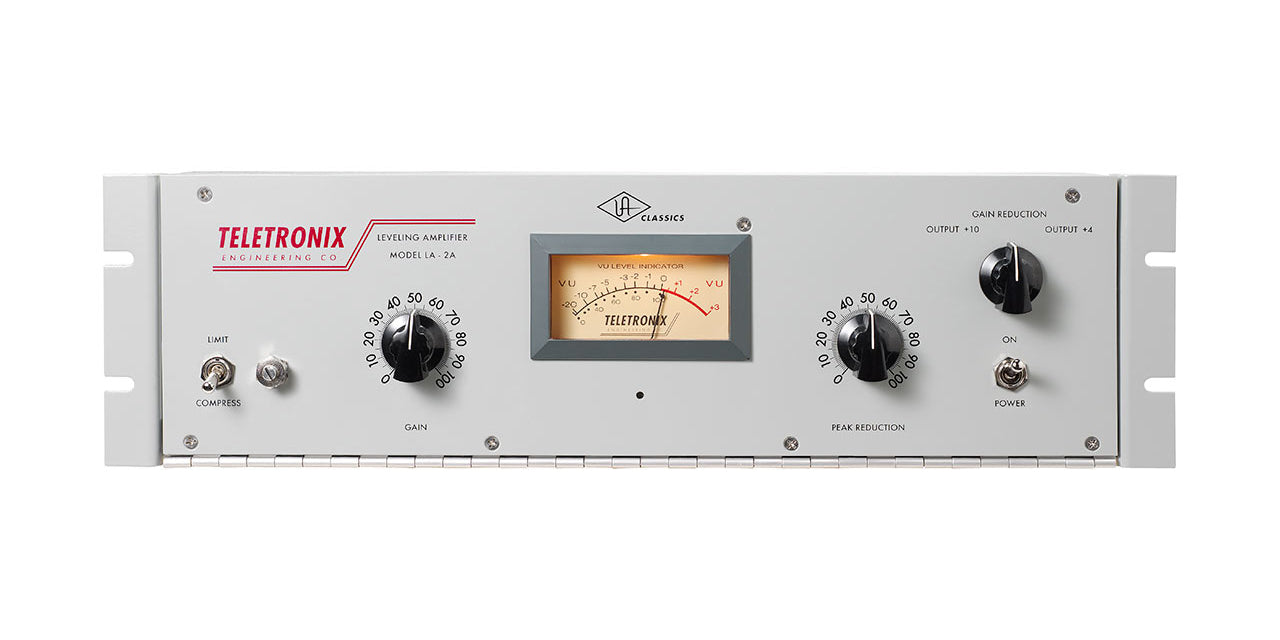

Universal Audio - La-2A Classic Tube Leveling Amp

True to the original design, UA's famed tube-amplified T4 electro-optical compressor.

For over 50 years the Teletronix LA-2A has been revered for its smooth, natural, musical compression. WIth its unique tube-driven electro-optical attenuator system that allows instantaneous gain reduction with no increase in harmonic distortion, the LA-2A massages signals like no other compressor ever made.

Features:
• True to the original in design, manufacturing and performance
• Lag free, distortion free optical attenuator system
• Distortion less than 0.5% THD
• 0 to 40 dB gain limiting
• Balanced stereo interconnection
• Frequency response 1 dB, 30 to 15,000 cps
• Output level of 10 dBm and 40 dB gain
• Low noise less than 70 dB below 10 dBm output

Specifications:
• Input Impedance: 50, 150, 250, 600 ohms
• Output Load Impedance: 50, 150, 250, 600 ohms
• External Connections: Jones Barrier terminals and XLR connectors
• Frequency Response: +0/-1 dB 30 Hz to 15kHz
• Gain: 40 dB 1dB
• Input Level: +16 dB maximum
• Output Level: +10 dB nominal, +16 dB maximum
• Distortion: Less than 0.5% THD (0.25% typical) at 10 dBm
• Noise: 70 dB below +10 dBm output level
• Attack Time: 10 milliseconds
• Release Time: 0.06 seconds for 50% release; 0.5 to 5 seconds for complete release
• Meter: dB gain reduction and dB output
• Power Requirements: 35 watts, 120/240 volts, 50/60 Hz
• Environmental: Maximum operating temperature 160F
