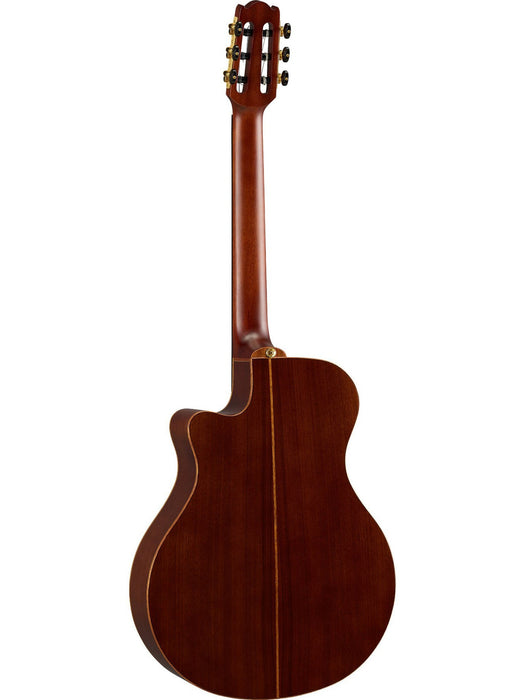

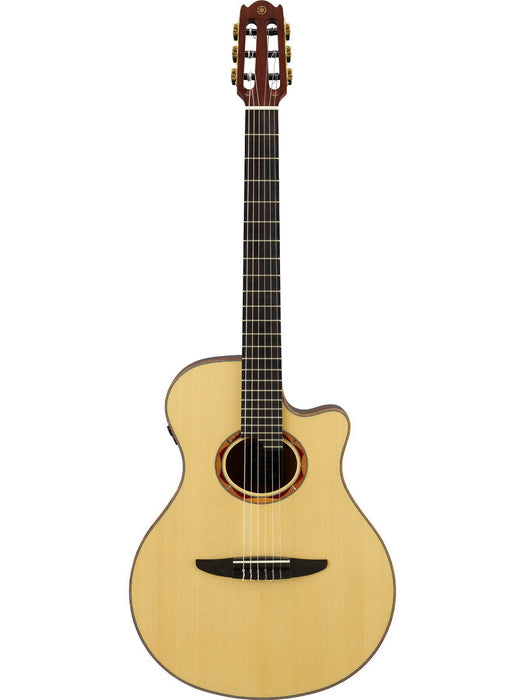

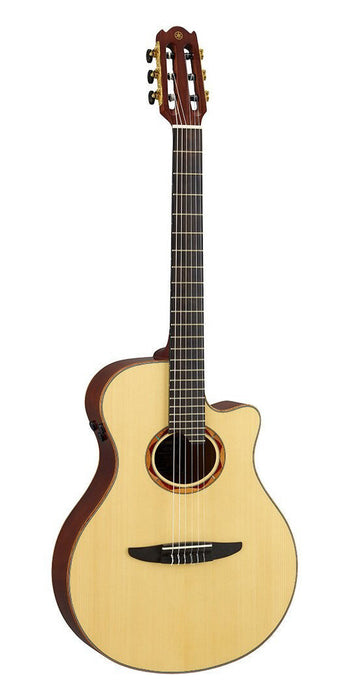

Yamaha NTX5 Nylon Acoustic-Electric Guitar, Cutaway, Pickup, Natural

The top-of-the-line NTX5 acoustic-electric, nylon-string guitar's modern looks and unparalleled amplified sound enable electric guitarists and steel-string players to easily explore the world of nylon-string playing, while strap buttons and the exceptional Atmosfeel™ pickup system make it especially appealing to performing guitarists.

The NX Series® features contemporary body styles and proprietary preamp and pickup systems developed with the needs of live performers in mind. NX Series guitars will appeal to both accomplished nylon-string players in search of superior amplified sound and electric and steel-string players seeking to explore the beauty of nylon-string sounds.

Style
With their sleek single-cutaway body shapes, appealing wood choices, colorful rosette patterns and tasteful appointments, NX Series guitars are designed for contemporary players seeking the perfect combination of comfort and style.

Bracing
As a result of precise measurement and experimentation, several refinements were made that enhance low-frequency response without compromising durability. These changes were further refined to emphasize the natural characteristics of specific tonewoods and optimize each body silhouette.

Atmosfeel™ Pickup and Preamp System
The Yamaha Atmosfeel™ pickup system provides unparalleled amplified sound even at performance-level volumes. An undersaddle piezo pickup with individual string sensors captures only the mid and low-mid frequencies (eliminating the characteristic brittleness of piezo pickups), while a unique synthetic sheet transducer captures the highs, and an internal microphone captures overall body resonance and "airiness."

Atmosfeel™ Controls
The simple and intuitive Atmosfeel™ preamp controls let you blend the microphone sound into the premixed pickup sound.

These simplified controls mean that guitarists are able to dial in the desired settings quickly and without the need to actually look at the controls.

Features

• Comfortable feel
• Designed for electric and steel-string players
• Exceptional amplified sound at performance-level volumes
• Solid European spruce top
• Solid walnut back and sides
• Mahogany neck with 24-fret ebony fingerboard
• Performance-friendly strap buttons
• Oval rosette

Specifications

Body Shape: APX Shape
Scale Length: 650mm
Body Length: 490mm
Total Length: 1026mm
Body Width: 384mm
Body Depth: 80-90mm
Nut Width: 48mm
String Spacing: 10.6mm
Top Material: Solid European Spruce
Back Material: Solid Walnut
Side Material: Solid Walnut
Neck Material: African Mahogany
Fingerboard Material: Ebony
Fingerboard Radius: R600mm
Bridge Material: Ebony + Walnut
Nut Material: Bone
Saddle Material: Bone
Bridge Pins: None
Tuners: Gold with Black Shaft
Body Binding: Mahogany + Black + White
Sound Hole Inlay: Abalone + Mahogany + Padauk
Pickguard: None
Body Finish: Gloss
Neck Finish: Matte
Electronics: Atmosfeel (Undersaddle Pickup + Contact Sensor + Mic)
Controls: Master Vol/Mic Blend/Treble EQ
Connections: Lne Out
Strings: Medium (Yamaha S10)
Accessories: Hex Wrench
Case: Reinforced Carrying Bag (NTX)
