Charvel Pro-Mod DK24 HH 2PT CM, Caramelized Maple Fingerboard, Gloss Black

Charvel® turns modern high performance on its head with the new Pro-Mod DK24 HH 2PT CM, a brazen instrument for the progressive guitarist searching for an unparalleled spectrum of sound.

SPECIFICATIONS

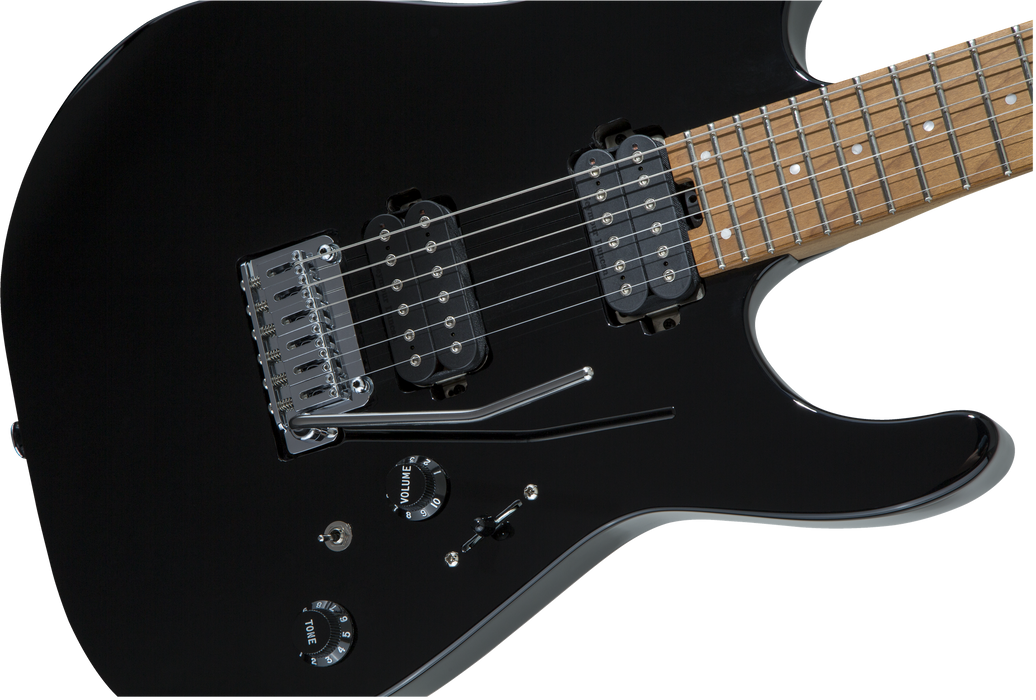

Electronics

• Bridge Pickup: Seymour Duncan® Full Shred™ TB-10
• Neck Pickup: Seymour Duncan® Alnico II Pro™ APH-1N
• Pickup Color: Black
• Controls:
  • Volume (500K EVH® Bourns® Low Friction Pot)
  • No-Load Tone
• Pickup Switching: 5-Position Blade
  1. Bridge Pickup
  2. Both Outer Coils
  3. Bridge and Neck Pickup
  4. Both Inside Coils
  5. Neck Pickup
• Auxiliary Switching: 2-Position Mini Toggle
  • Down: All Series
  • Up: All Parallel
• Pickup Configuration: HH

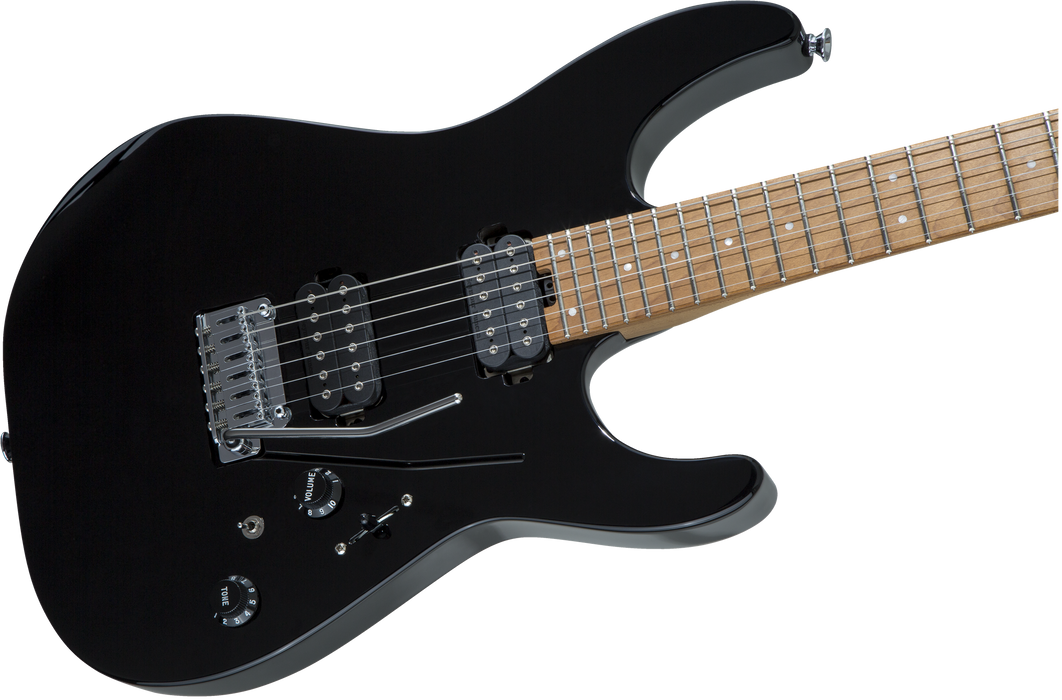

Body

• Body Finish: Gloss
• Body Shape: Dinky®
• Body Material: Alder

Hardware

• Bridge: Gotoh® Custom 510 Tremolo
• Hardware Finish: Chrome
• Tremolo Arm: Gotoh®

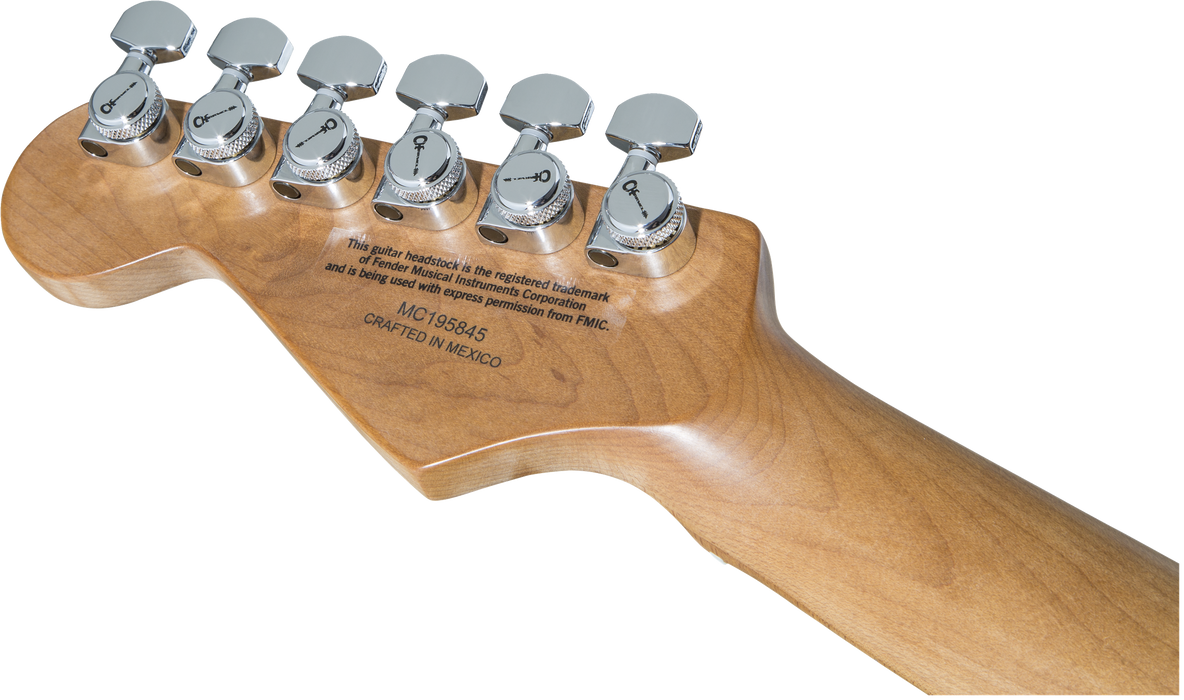

• Tuning Machines: Charvel®-Branded Die-Cast Locking
• Pickguard: None
• Control Knobs: Strat®-Style Skirt
• Switch Tip: Black
• Saddle Height Wrench: Yes

Neck

• Neck Material: Caramelized Maple
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Finish: Hand-Rubbed Urethane
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Neck Binding: None - Rolled Fingerboard Edges
• Scale Length: 25.5" (64.77 cm)
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Caramelized Maple
• Number of Frets: 24
• Fret Size: Jumbo
• Nut Material: Graph Tech TUSQ XL
• Nut Width: 1.6875" (42.86 mm)
• Position Inlays: 4mm Pearloid Dot
• Side Dots: Luminlay®
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• String Trees: Fender® Standard String Guide

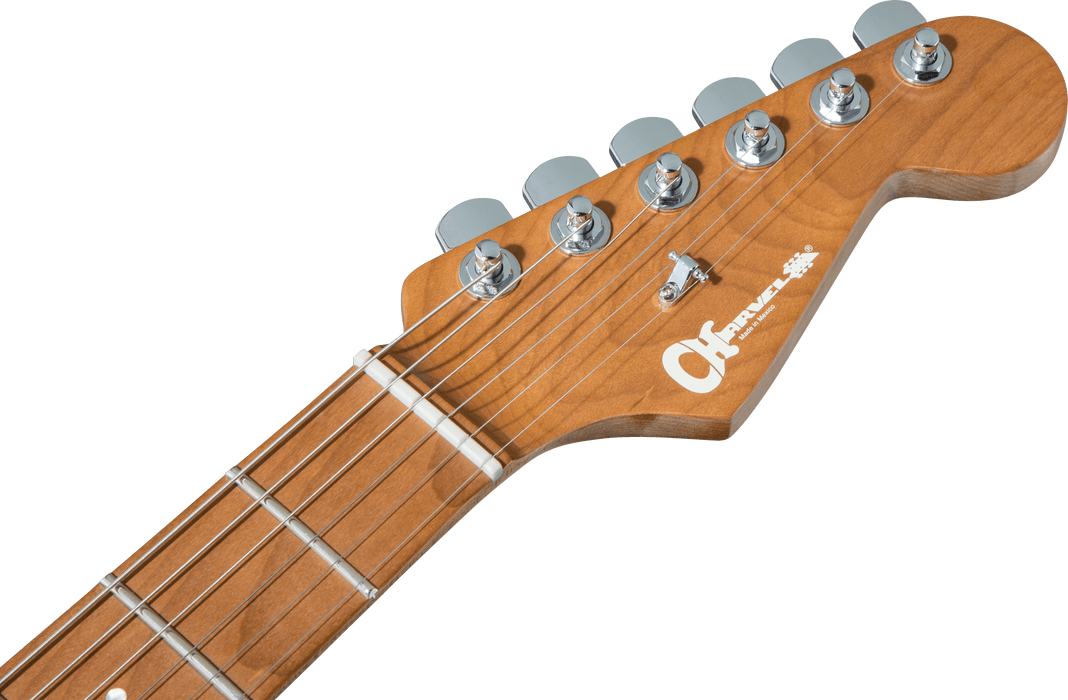

• Headstock: Licensed Fender® Stratocaster®
• Neck Plate: None - 4-Bolt Sculpted Heel

Miscellaneous

• Strings: Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons: Standard
• Case/Gig Bag: Optional Gig Bag (p/n 007-6756-000)
