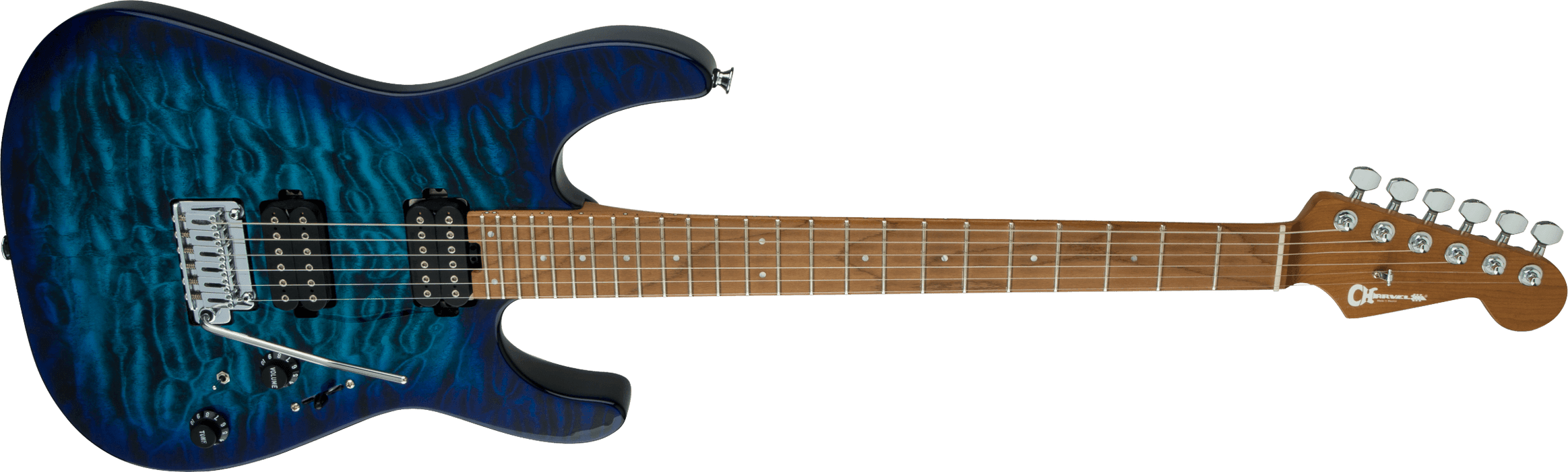

Charvel - Pro-Mod DK24 HH 2PT CM QM, Caramelized Maple Fingerboard, Chlorine Burst

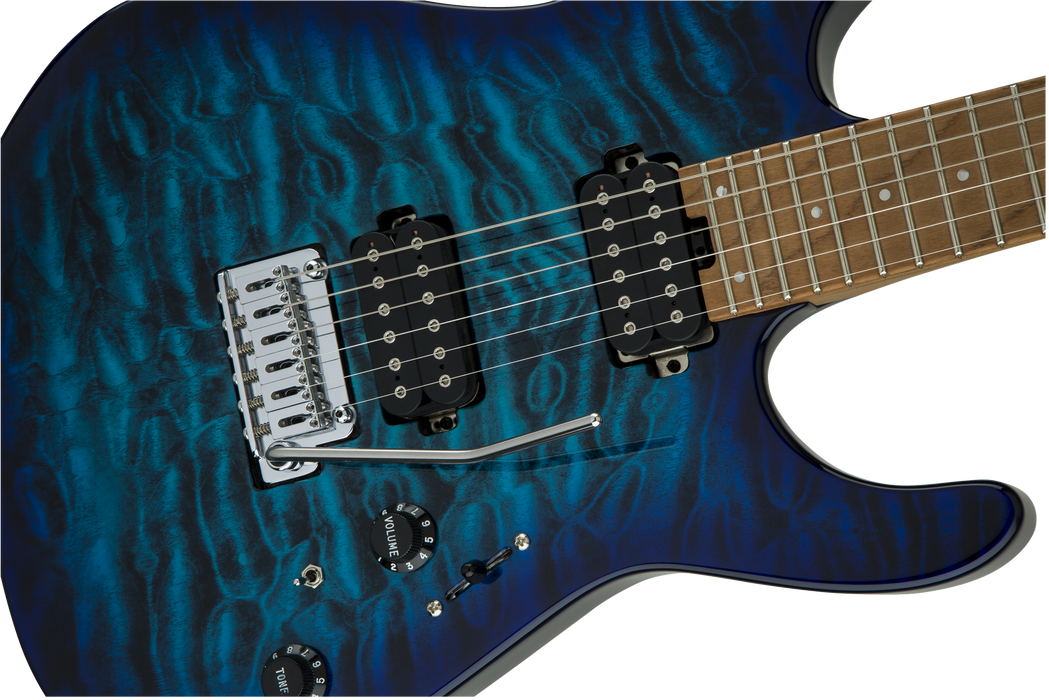

Featuring a sculpted shredder's cut heel and a scalloped lower back bout for easy upper access to the fingerboard, the alder body in the classic Dinky® style is completed with an elegant quilt maple top dressed in a captivating Chlorine Burst finish. The bolt-on caramelized maple "speed" neck has graphite reinforcement, silky-smooth hand-rubbed urethane back finish, heel-mount truss rod adjustment wheel and Luminlay® side dots. Its 12"-16" compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.

Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this axe offers an HH pickup configuration consisting of a direct mount Custom Seymour Duncan® Full Shred TB-10 bridge pickup and direct mount Seymour Duncan® Alnico II Pro APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.

Blending sophisticated style with assertive tone, the DK24 HH 2PT CM QM also offers premium modern features such as a five-way blade pickup switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low-friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge, locking tuners, chrome hardware and more.

SPECIFICATIONS

ELECTRONICS

• Bridge Pickup: Seymour Duncan® Full Shred™ TB-10 (high-output pickup, ideal for tight and aggressive tones)
• Neck Pickup: Seymour Duncan® Alnico II Pro™ APH-1N (provides a smooth and warm tone with a vintage vibe)
• Pickup Color: Flat Parchment (subtle and stylish)
• Controls:
  • Volume (with 500K EVH® Bourns® Low Friction Potentiometer for precise volume control)
  • No-Load Tone (full range of tonal options without tone loss)
• Pickup Switching:
  • 5-Position Blade Switch:
    • Pos 1: Bridge Pickup
    • Pos 2: Both Outer Coils
    • Pos 3: Bridge and Neck Pickup
    • Pos 4: Both Inside Coils
    • Pos 5: Neck Pickup
  • 2-Way Mini Toggle:
    • Down: All Series
    • Up: All Parallel (for expanded tonal options)
• Pickup Configuration: HH (Humbucker in both bridge and neck positions)

BODY

• Body Finish: Gloss (providing a shiny, sleek look)
• Body Shape: Dinky® (Charvel's signature shape, offering a sleek, ergonomic form that enhances comfort and playability)
• Body Material: Alder (a classic tonewood known for balanced sound, with good clarity and resonance)
• Body Top: Quilt Maple (adds visual depth and complexity)

HARDWARE

• Bridge: Gotoh® Custom 510 Tremolo (reliable and smooth, providing excellent tuning stability)
• Hardware Finish: Chrome (a sleek and shiny finish)
• Tremolo Arm: Gotoh® (designed for smooth operation and tuning stability)
• Tuning Machines: Charvel®-Branded Die-Cast Locking (for fast, precise tuning and great tuning stability)
• Pickguard: None (a clean, minimalist look)
• Control Knobs: Strat®-Style Skirt (easy-to-use, smooth control knobs)
• Switch Tip: Parchment (complements the color scheme and enhances the vintage vibe)

NECK

• Neck Material: Caramelized Maple (offers smooth playing and stability, with a slight darker hue)
• Neck Construction: Bolt-On with Graphite Reinforcement (provides excellent strength and durability)
• Neck Finish: Hand-Rubbed Urethane (smooth, fast finish)
• Neck Shape: Speed Neck with Rolled Fingerboard Edges (designed for fast playing and comfort)
• Neck Binding: None (provides a seamless, unbroken playing surface)
• Scale Length: 25.5" (64.77 cm) (classic Fender scale length, providing bright tones and a snappy response)
• Fingerboard Radius: 12"-16" Compound Radius (from flat to curved, allowing for easy chord work and smooth bends)
• Fingerboard Material: Caramelized Maple (matches the neck and adds warmth to the tone)
• Number of Frets: 24 (extended range for lead playing)
• Fret Size: Jumbo (ideal for bends and smooth playing)
• Nut Material: Graph Tech TUSQ XL (provides enhanced tuning stability)
• Nut Width: 1.6875" (42.86 mm) (perfect for a comfortable, standard playing feel)
• Position Inlays: 4mm Pearloid Dot (classic and easy-to-read)
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel (for easy and convenient neck adjustments)
• Headstock: Licensed Fender® Stratocaster® (classic headstock for added aesthetic appeal)
• Neck Plate: None - 4-Bolt Sculpted Heel (smooth neck joint for easier access to upper frets)

MISCELLANEOUS

• Strings: Nickel Plated Steel (.009-.042 Gauges) (light gauge for smooth playing and ease of bending)
• Strap Buttons: Standard
• Case/Gig Bag: Optional Gig Bag (p/n 007-6756-000) (for safe transportation)
